USGS 01386990 Wanaque Reservoir at Wanaque NJ


Click to hidestation-specific text
During winter months, cold and ice may result in inaccurate real-time lake or reservoir elevation data. Adjustments or deletions of this data can only be done after detailed analysis.



LOCATION.--Lat 41°02'42", long 74°17'43" referenced to North American Datum of 1983, Wanaque Borough, Passaic County, NJ, Hydrologic Unit 02030103, at Raymond Dam on Wanaque River at Wanaque, 1,700 ft upstream of bridge on County Route 511 (Ringwood Avenue), and 3.3 mi north of Riverdale.
DRAINAGE AREA.--90.4 mi2.
PERIOD OF RECORD.--February 1928 to current year.
REVISED RECORDS.--WDR NJ-85-1: 1984 (M). WRD US-2013: Usable capcity.
GAGE.--Water-stage recorder with telemetry. Datum of gage is National Geodetic Vertical Datum of 1929 (levels by North Jersey District Water Supply Commission).
REMARKS.--Reservoir is formed by earthfill with concrete-core wall main dam and seven secondary dams; dams completed in 1927 and storage began in March 1928. Total capacity at spillway level, 29,630,000,000 gal, elevation, 302.4 ft, prior to 1986, 300.3 ft. Available capacity at spillway level, 29,488,000,000 gal (revised). Outflow mostly controlled by sluice gates in intake conduits in gatehouse. Water is diverted from reservoir for municipal supply. Diversion to reservoir from Posts Brook, Pompton River, and Ramapo River. Records given herein represent total capacity. Annual extremes beginning in water year 2014 can be obtained by using this link. Prior to water year 2014, annual extremes can be obtained on the respective annual water year summary.
EXTREMES FOR PERIOD OF RECORD.--Maximum contents, 31,280,000,000 gal, Apr 5, 1984, elevation, 304.52 ft; minimum contents, 5,110,000,000 gal, Dec 26, 1964, elevation, 256.06 ft.

Gage Photo

Occasionally the reservoir levels appear to be several tenths of a foot too low due to possible drawdown caused by use of water supply intakes at certain levels.

This station managed by the New Jersey Water Science Center.

Available Parameters Available Period
All 1 Available Parameters for this site
62614 Elevation, lake/res, 2007-10-01  2016-10-28

Graph w/ stats
Graph w/o stats
Graph w/ (up to 3) parms
Days  (7)

  -- or --
Begin date

End date

Summary of all available data for this site
Instantaneous-data availability statement

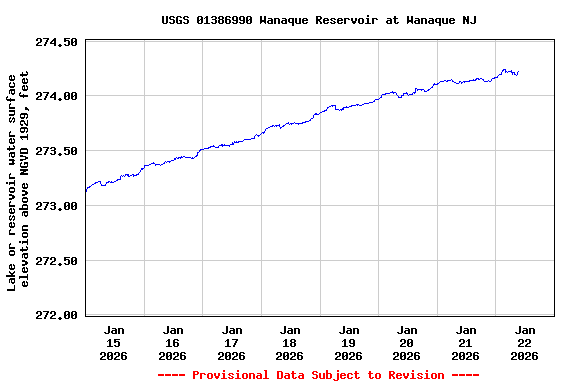

Lake or reservoir water surface elevation above NGVD 1929, feet

Most recent instantaneous value: 271.67   10-28-2016   09:00 EDT
Graph of

Add up to 2 more sites and replot for "Lake or reservoir water surface elevation above NGVD 1929, feet"
