USGS 01323500 GREAT SACANDAGA LAKE AT CONKLINGVILLE NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



> Site Information
LOCATION.--Lat 43°18'57", long 73°55'39" referenced to North American Datum of 1927, Saratoga County, NY, Hydrologic Unit 02020002, 800 ft upstream from right end of Conklingville Dam on Sacandaga River at Conklingville.
DRAINAGE AREA.--1,044 mi².
PERIOD OF RECORD.--January 1930 to current year. Prior to October 1969, published as "Sacandaga Reservoir at Conklingville".
GAGE.--Water-stage recorder. Datum of gage is NGVD of 1929, adjustment of 1912. To convert elevations to NAVD of 1988, subtract 0.88 ft. Prior to Apr. 23, 1930, nonrecording gage at same datum in outlet channel 800 ft downstream.
COOPERATION.--Supplemental elevation record and capacity table provided by Board of Hudson River-Black River Regulating District.
REMARKS.--Reservoir is formed by earth and concrete dam; storage began in March 1930; dam completed in 1930. Usable capacity for stream regulation, 29.920 bil ft³ between elevations 740.0 ft and 771.0 ft (spillway crest). Elevation of inverts of three Dow valves is 699.0 ft. Capacity of 7.800 bil ft³ below elevation 740.0 ft is considered dead storage, except for extraordinary emergencies or for necessary inspection of structures. Figures given herein represent total contents. Purpose of reservoir is to provide flood control and low-water stream regulation for sanitary improvement, navigation, and power, as required by the public welfare, including public health and safety. Area of water surface of reservoir filled to capacity, elevation 771.0 ft, is 41.7 mi².
Capacity table (elevation, in feet, and total contents, in billions of cubic feet)

Elevation  Contents      Elevation  Contents
738.0     6.43           760.0     25.61
740.0     7.80           764.0     29.85
745.0    11.64           768.0     34.27
750.0    15.94           771.0     37.72
755.0    20.61           774.0     41.26


EXTREMES FOR PERIOD OF RECORD.--Maximum elevation, 774.47 ft, May 1, 2011, contents, 41.824 bil ft³; minimum elevation since first filling, 729.55 ft, Mar. 30, 1940, contents, 2.100 bil ft³.
> Rating Information
> Additional Site Information

Peak Flow and Stage Information

NAVD 1988 Datum Conversion Information

Information regarding regulation of Great Sacandaga Lake: Hudson River-Black River Regulating District

Additional graph available (click on graph or name):

Great Sacandaga Lake elevation graph

Year-to-date Elevation

Gage PhotoStation image



This station managed by the NY Water Science Center Troy.

Available Parameters Available Period

2007-10-01  2024-03-19
2023-11-20  2024-03-19







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Lake or reservoir water surface elevation above NGVD 1929, feet

Most recent instantaneous value: 769.99 03-19-2024   01:30 EST

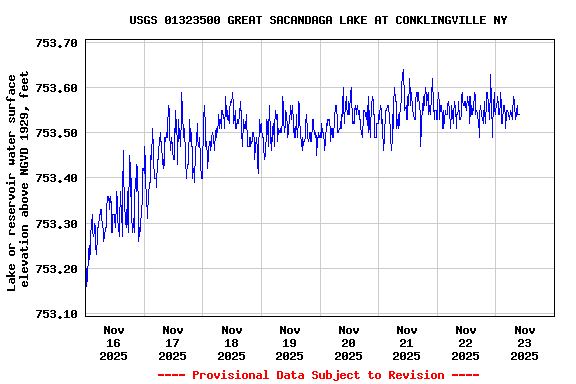

Graph of  Lake or reservoir water surface elevation above NGVD 1929, feet

Add up to 2 more sites and replot for "Lake or reservoir water surface elevation above NGVD 1929, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages




Lake or reservoir water surface elevation above NAVD 1988, feet

Most recent instantaneous value: 769.11 03-19-2024   01:30 EST

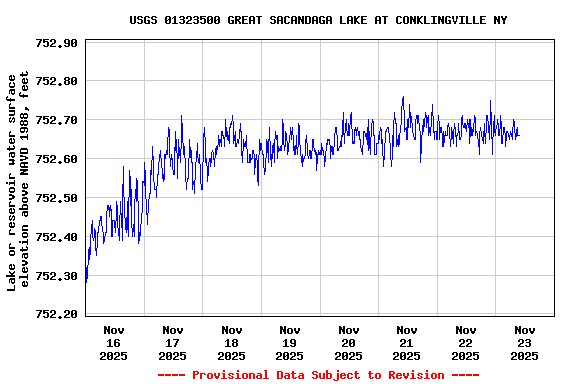

Graph of  Lake or reservoir water surface elevation above NAVD 1988, feet

Add up to 2 more sites and replot for "Lake or reservoir water surface elevation above NAVD 1988, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages
