USGS 01480300 West Branch Brandywine Creek near Honey Brook, PA

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text

Station gage imageSTATION.--01480300 WEST BRANCH BRANDYWINE CREEK NEAR HONEY BROOK, PA
LOCATION.--Lat 40`04'22", long 75`51'40", Chester County, Hydrologic Unit 02040205, on right bank on upstream side of bridge on SR 15185 at Birdell, 0.4 mi downstream from Two Log Run, and 3.0 mi southeast of Honey Brook.
DRAINAGE AREA.--18.7 mi2.
PERIOD OF RECORD.--June 1960 to current year.
GAGE.--Water-stage recorder, crest-stage gage, water-quality monitor, and climatological sensor. Datum of gage is 591.20 ft above National Geodetic Vertical Datum of 1929. Satellite and land-line telemetry at station.
GAGE HEIGHTS OF IMPORTANCE.-
Supplied by NWS: Action stage-6 ft; Flood stage-7 ft; Moderate flood stage-9 ft; Major flood stage-11 ft.
COOPERATION.--Station established and maintained by the U.S. Geological Survey. Funding for the operation of this station is provided by the Pennsylvania Department of Environmental Protection, Chester County Water Resources Authority, and the U.S. Geological Survey through the Cooperative Water Program.
This station managed by the PAWSC Exton Field Office.

Available Parameters Available Period
All 4 Available Parameters for this site

00065 Gage height 2014-04-02  2014-07-31
00060 Discharge 2007-10-01  2014-07-31
00045 Precipitation 2007-10-01  2014-07-31
63680 Turbidity, Form Neph 2007-10-04  2014-07-31

Graph
Graph w/ stats
Graph w/o stats
Graph w/ (up to 3) parms
Table
Tab-separated
Days  (7)


  -- or --
Begin date


End date


Summary of all available data for this site
Instantaneous-data availability statement

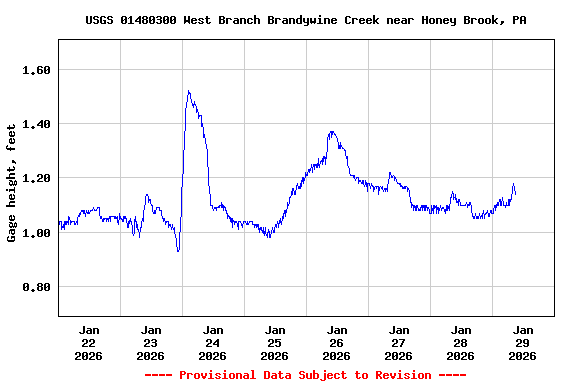

Gage height, feet

Most recent instantaneous value: 1.20   07-31-2014  12:45 EDT
Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




Discharge, cubic feet per second

Most recent instantaneous value: 19   07-31-2014  12:45 EDT
Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert


Daily discharge, cubic feet per second -- statistics for Jul 31 based on 54 years of record more
Min
(1963)
25th
percen-
tile
Median Mean 75th
percen-
tile
Most Recent
Instantaneous
Value Jul 31
Max
(1989)
2.2 7.6 11 14 18 19 44


Precipitation, total, inches

Most recent instantaneous value: 0.00   07-31-2014  12:45 EDT
Graph of  Precipitation, total, inches

Add up to 2 more sites and replot for "Precipitation, total, inches"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

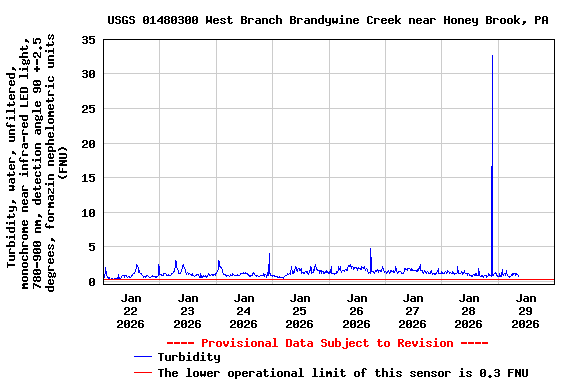

Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Most recent instantaneous value: 6.9   07-31-2014  12:45 EDT
Graph of  Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Add up to 2 more sites and replot for "Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert
