LOCATION.--Lat 39°16'55", long 77°47'22",
      referenced to North American Datum of 1927, Jefferson County, WV, Hydrologic Unit 02070007,
      on left bank 0.4 mi downstream from Cattail Run, 1.0 mi upstream from Millville,
      5.0 mi upstream from Harpers Ferry, and at mile 4.7.
DRAINAGE AREA.--3,041 mi2.
PERIOD OF RECORD.--April 1895 to March 1909 (monthly discharge published in WSP 1302 and annual maxima),
      August 1928 to current year (daily discharge and peaks).
REVISED RECORDS.--WSP 951: 1936(M). WSP 1432: 1895-99, 1901-02, 1905, 1907-08, 1932(M), 1935(M).
      WDR WV-97-1: Drainage area. WDR-US-2006: Drainage area.
GAGE.--Water-stage recorder with satellite telemeter. Datum of gage is 292.44 ft above NAVD 88
      (GPS levels). Apr. 15, 1895 to Mar. 31, 1909, nonrecording gage at site 0.8 mi downstream
       at datum 0.32 ft higher.
REMARKS.--Some regulation by upstream hydroelectric plants, including
        that of Potomac Light and Power Company, 0.5 mi upstream from
EXTREMES OUTSIDE PERIOD OF RECORD.--Flood of 1870 reached a stage of about 26.4 ft
      (about the same as the flood of Mar. 18, 1936, at current site and datum),
      discharge, about 151,000 ft3/s. Flood of May 13, 1924, reached a stage of 21.10 ft
      (at site and datum in use Apr. 15, 1895 to Mar. 31, 1903), discharge, 119,000 ft3/s.
This gaging station is maintained in cooperation with:
        PE Hydro Generation, LLC

Current shift adjusted stage-discharge rating table. These tab delimited tables are updated daily and can change frequently. If you use these ratings, it is important that you update often so that you have the most current version.
What is a shift adjusted stage-discharge rating?

This station managed by the Leetown Field Office.

Available Parameters Available Period
All 2 Available Parameters for this site
00060 Discharge 2007-10-01  2016-10-20
00065 Gage height 2016-06-22  2016-10-20

Graph w/ stats
Graph w/o stats
Graph w/ (up to 3) parms
Days  (7)

  -- or --
Begin date

End date

Summary of all available data for this site
Instantaneous-data availability statement

Discharge, cubic feet per second

Most recent instantaneous value: 970   10-20-2016   15:30 EDT

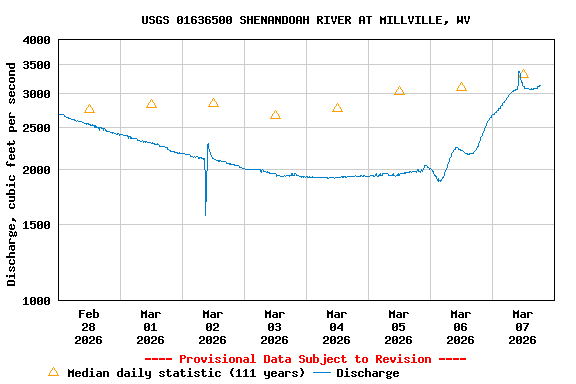

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

 Add site numbers

Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Daily discharge, cubic feet per second -- statistics for Oct 20 based on 102 years of record more
Median Most Recent
Value Oct 20
Mean Max
355 587 830 970 1340 2200 37900

Gage height, feet

Most recent instantaneous value: 2.07   10-20-2016   15:30 EDT

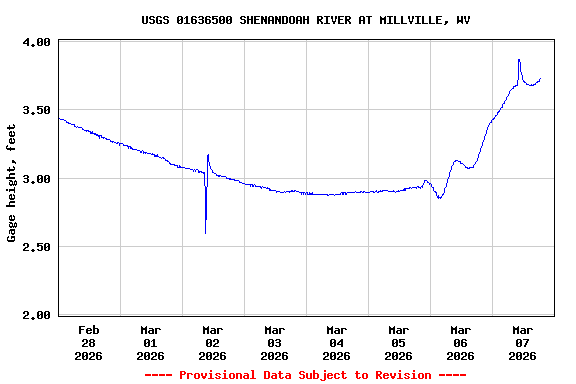

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

 Add site numbers

Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert
