USGS 03023100 French Creek at Meadville, PA

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text




STATION.--03023100 FRENCH CREEK AT MEADVILLE, PA
LOCATION.--Lat 41`37'57", long 80`09'35", Crawford County, Hydrologic Unit 05010004, on left bank 30 ft upstream from bridge on Mercer Street at Meadville, 300 ft downstream from Mill Run, 2,600 ft downstream from Cussewago Creek, and at mile 30.5.
DRAINAGE AREA.--788 square miles.
PERIOD OF RECORD.--October 1988 to current year.
GAGE.--Water-stage recorder and non-heated tipping bucket precipitation gage. Datum of gage is 1,058.26 ft above North American Vertical Datum of 1988. Prior to January 4, 2023 the gage datum was reported as 1,058.83 ft above National Geodetic Vertical Datum of 1929 (U.S. Army Corps of Engineers bench mark). Prior to October 27, 1989, water-stage recorder at site 2,300 ft upstream at different datum. Satellite telemetry at station.
COOPERATION.--Station established and maintained by the U.S. Geological Survey. Funding for the operation of this station is provided by the U.S. Army Corps of Engineers, Pittsburgh District, the Pennsylvania Department of Environmental Protection and the U.S. Geological Survey.
REMARKS.--Flow regulated since October 1971 by Union City Reservoir 43 mi upstream, serving as a retarding basin, and since January 1971 by Woodcock Creek Lake 9.0 mi upstream.
The 15-minute precipitation data for this station are temporary and will only be displayed for 120 days. Time series of 1-hour or cumulative daily values will NOT be available for retrieval following the 120-day display period. Although the instrumentation is calibrated at least once a year, the temporary classification means that documented routine inspections and other quality assurance measures are not performed that would make the data acceptable for archival, retrieval, or future use in general scientific or interpretive studies.

GAGE HEIGHTS OF IMPORTANCE.-
Supplied by NWS: Action stage-11 ft; Flood stage-14 ft; Moderate flood stage-16 ft; Major flood stage-17 ft.
This station managed by the PAWSC Pittsburgh Field Office.

Available Parameters Available Period

2024-07-23  2024-11-21
1990-10-01  2024-11-21
2007-10-01  2024-11-21
2021-11-21  2024-11-21







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Precipitation, total, inches

Most recent instantaneous value: 0.00 11-21-2024   00:15 EST

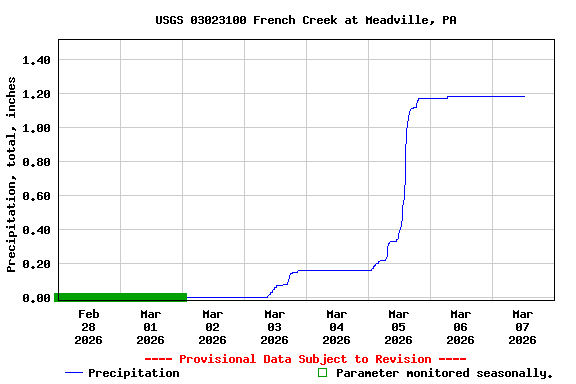

Graph of  Precipitation, total, inches

Add up to 2 more sites and replot for "Precipitation, total, inches"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages




Discharge, cubic feet per second

Most recent instantaneous value: 375 11-21-2024   00:15 EST

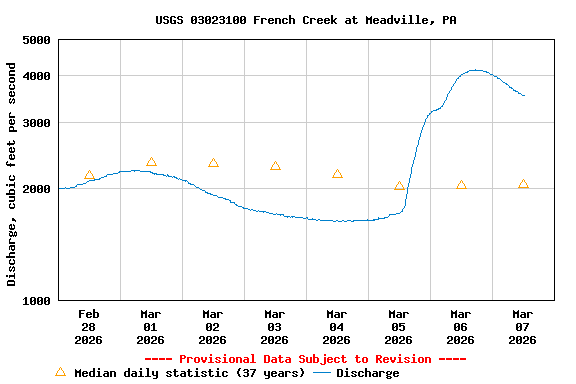

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Nov 21 based on 35 water years of record more
Min
(1999)
Most Recent
Instantaneous
Value Nov 21
25th
percen-
tile
Median Mean 75th
percen-
tile
Max
(2018)
155 375 1030 1590 1840 2500 5470


Gage height, feet

Most recent instantaneous value: 2.33 11-21-2024   00:15 EST

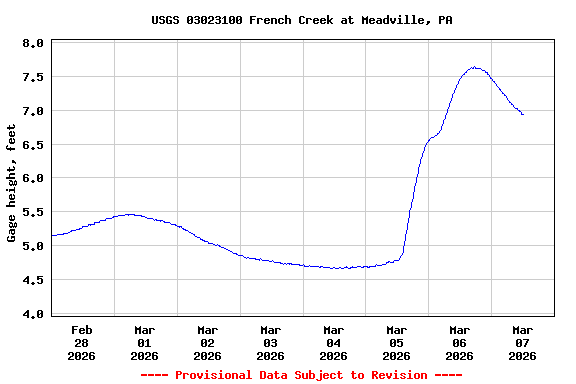

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages




Stream water level elevation above NAVD 1988, in feet

Most recent instantaneous value: 1060.59 11-21-2024   00:15 EST

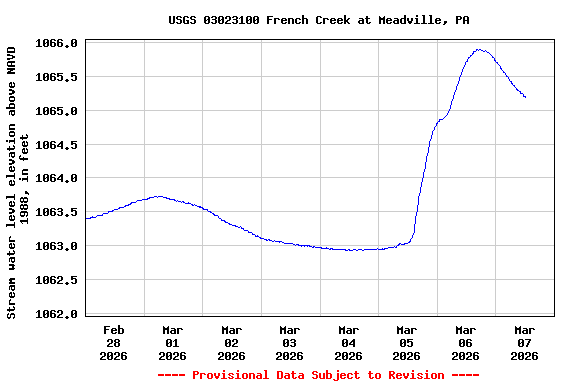

Graph of  Stream water level elevation above NAVD 1988, in feet

Add up to 2 more sites and replot for "Stream water level elevation above NAVD 1988, in feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages
