USGS 01589316 DEAD RUN TRIBUTARY NEAR WOODLAWN, MD

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text

LOCATION.--Lat 39°19'08.1", long 76°45'02.5", Baltimore County, Hydrologic Unit 02060003,
   on left bank at downstream side of culvert on Lord Baltimore Drive, 1.3 mi northwest of Woodlawn,
   2.4 mi north of Catonsville, and 2.1 mi west of Baltimore City.
DRAINAGE AREA.--0.74 mi2.
PERIOD OF RECORD.--January 2008 to current year. Gage-height records collected at this location
   for water years 2008-11 are published in WDR-US-2009, WDR-US-2010, and WDR-US-2011.
GAGE.--Water-stage recorder and crest-stage gage. Datum of gage is 376.32 ft above North American Vertical
   Datum of 1988.
REMARKS.--Records are furnished by the University of Maryland, Baltimore County, Center for Urban Environmental
   Research and Education (CUERE). CUERE gage-height telemeter at station.
   For any inquiries or to report malfunctions please contact Dr. Claire Welty at (410) 455-1766 (weltyc@umbc.edu).
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge, 1,030 ft³/s, July 30, 2016, gage height, 6.20 ft; minimum
   discharge, 0 ft³/s, no flow at times on Aug. 19-28, Sept. 1-5, 2008, Sept. 25, 26, 2010, July 17, 18, 20-23, 2011.
COOPERATION.--Funding for the operation of this station is provided by the Chesapeake Bay Trust,
   the Center for Urban Environmental Research and Education, University of Maryland Baltimore County, and the
   U.S. Geological Survey.
Boating safety tips
This station managed by the MD-DE-DC Water Science Center Baltimore office.

Available Parameters Available Period
All 2 Available Parameters for this site

00060 Discharge 2008-01-30  2019-05-20
00065 Gage height 2008-01-30  2019-05-20

Graph
Graph w/ stats
Graph w/o stats
Graph w/ (up to 3) parms
Table
Tab-separated
Days  (7)


  -- or --
Begin date


End date


Summary of all available data for this site
Instantaneous-data availability statement


Discharge, cubic feet per second

Most recent instantaneous value: 0.20 05-20-2019   17:45 EDT

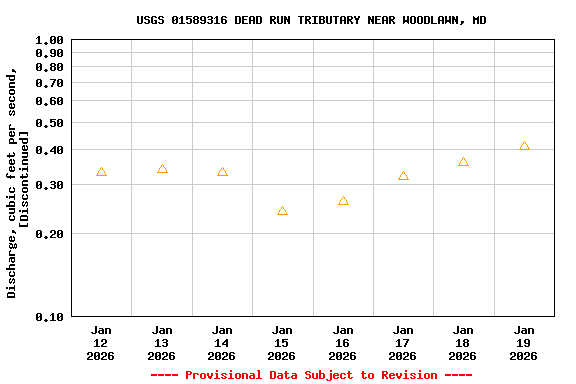

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert


Daily discharge, cubic feet per second -- statistics for May 20 based on 10 years of record more
Min
(2012)
25th
percen-
tile
Median Most Recent
Instantaneous
Value May 20
75th
percen-
tile
Mean Max
(2008)
0.04 0.09 0.17 0.20 0.52 0.57 3.45


Gage height, feet

Most recent instantaneous value: 0.24 05-20-2019   17:45 EDT

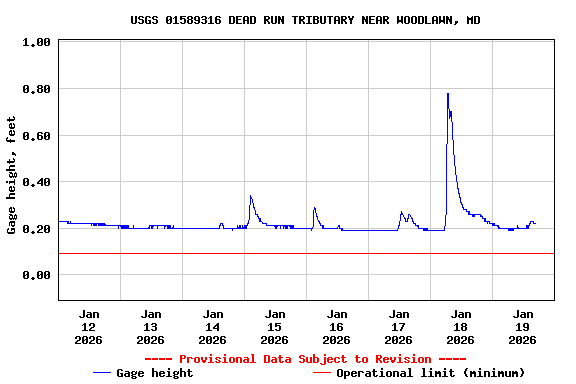

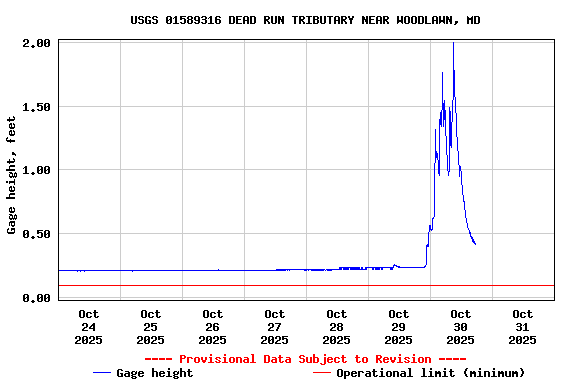

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert
