USGS 474126096165301 WLN06 149N44W27CDBB 01 G12-R 0000620672

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text
USGS Climate-Response Network (CRN) Well WLN06
Glacial Ridge Well G12
County: Polk
Township: Tilden (T149N R44W)
Location: In field 3/4 mile south of County Road 45
Land-surface elevation: 1126.42±0.07 feet, NAVD88
Installation: 21 August 2002, for the U.S. Geological Survey

Well information
Depth: 14.94 feet
Open interval: 8.76–13.06 feet
Original use: Monitoring, for the U.S. Geological Survey's Glacial Ridge Hydrology study
Current use: Monitoring, for the USGS National Groundwater and Streamflow Information Program

Aquifer information
Type: Unconfined sand and gravel
Thickness: 13 feet (0–13 feet, BLS)
Deposit: Surficial, beach of Glacial Lake Agassiz

USGS logo This site (2016-present) is monitored as part of the USGS National Groundwater and Streamflow Information Program

Legislative and Citizen's Commission on Minnesota Resources U.S. Fish & Wildlife Service-Glacial Ridge NWR Red Lake Watershed District The Nature Conservancy in Minnesota


During 2002–2015, this site was operated in cooperation with the U.S. Fish & Wildlife Service, Red Lake River Watershed District, The Nature Conservancy, and the Environment and Natural Resources Trust Fund.

Water levels below land surface are accurate to 0.01 feet. Water levels above North American Vertical Datum of 1988 (sea level) are calculated by subtracting recorded water levels from the land surface elevation, which is accurate to 0.07 feet based on a differential GPS survey. Water-level differences are accurate to within 0.01 feet.

Water temperature is accurate to plus-or-minus 1.0°C, and differences in temperature are accurate to 0.1°C

Water temperatures were recorded at 13.1 feet below land surface during 23 Oct. 2002 to 18 Oct. 2016. Beginning on 18 Oct. 2016, the transducer was repositioned in the well and began recording water temperature data at 12.7 feet below land surface.

Precipitation is accurate to 0.01 inches except during freezing periods (about Dec. through early Apr.). The rain gage is unheated and uncovered. The precipitation data during freezing periods result from melting of snow (accumulated in the rain gage) during warm periods and do NOT represent actual precipitation. Precipitation totals during freezing periods may underestimate actual totals because the rain gage funnel may be full of snow (preventing further accumulation) or because snow in the funnel may sublimate instead of melt.

This station managed by the Mounds View Field Office.

Available Parameters Available Period

2016-10-18  2024-11-23
2007-10-01  2016-10-17
2007-10-01  2024-11-23
2002-10-26  2024-11-23
2002-10-26  2024-11-23








 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Groundwater level above NAVD 1988, feet

Most recent instantaneous value: 1120.02 11-23-2024   02:00 CST

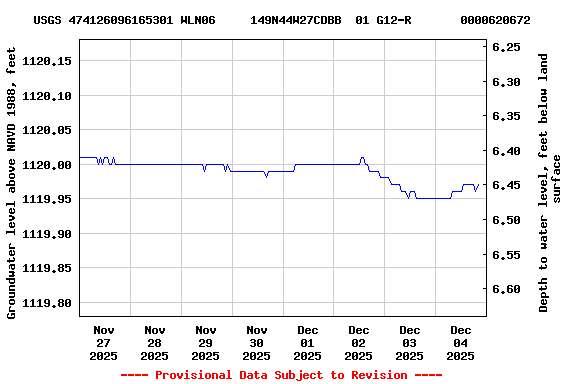

Graph of  Groundwater level above NAVD 1988, feet

Add up to 2 more sites and replot for "Groundwater level above NAVD 1988, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages




Depth to water level, feet below land surface

Most recent instantaneous value: 6.40 11-23-2024   02:00 CST

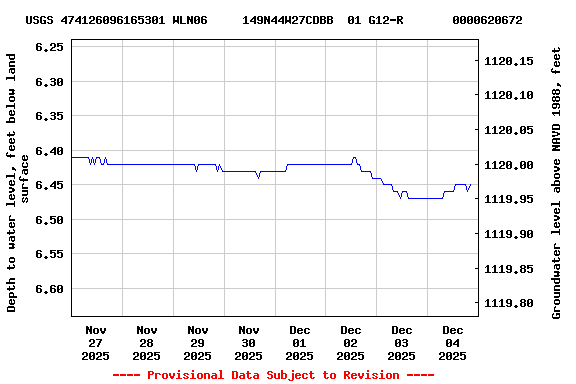

Graph of  Depth to water level, feet below land surface

Add up to 2 more sites and replot for "Depth to water level, feet below land surface"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages
