USGS 04086000 SHEBOYGAN RIVER AT SHEBOYGAN, WI

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text

LOCATION.-- Lat 43°44'29.0", long 87°45'7.6", in NW 1/4 SE 1/4 NW 1/4 sec.28, T.15 N., R.23 E., Sheboygan County, Hydrologic Unit 04030101, on left bank 0.3 mi upstream from County Road PP bridge and 0.2 mi downstream from Interstate 43 bridge, near west city limits of Sheboygan, and 3.9 mi upstream from mouth.

DRAINAGE AREA.--418 square miles.

PERIOD OF RECORD.--June 1916 to September 1924 (published as "near Sheboygan"), October 1950 to present. Monthly discharge for some periods published in WSP 1307, 1727.

REVISED RECORDS.--WSP 1307: 1917(M), 1919(M), 1921(M), 1923(M). WSP 1727: 1951. WDR WI-79-1: Drainage area.

GAGE.-- Water-stage recorder. Datum of gage is 580.41 ft NAVD 1988. June 1916 to June 1924, nonrecording gage at site 0.4 mi downstream at different datum. November 1950 to June 1951, nonrecording gage near present site at different datum. July 1951 to September 1998, water-stage recorder at site 0.3 mi upstream at different datum.

REMARKS.--Diurnal fluctuation caused by numerous powerplants above station. Gage-height telemeter at station.

OPERATED IN COOPERATION WITH:

Wisconsin Department of Natural Resources Logo Wisconsin Department of Natural Resources

Additional Information:

National Weather Service Logo National Weather Service Flood Forecast Page

The precipitation data for this station are temporary and will only be displayed for 120 days. Although the instrumentation is calibrated at least annually, the temporary classification means that documented routine inspections and other quality-assurance measures are not performed that would make the data acceptable for archival, retrieval, or future use in general scientific or interpretive studies.

Boating safety tips

Click on animated image to see the latest full size current video from site. Click on the Static Image to view the Frame Gallery.



Time-lapse video products are considered a proof of concept with no guarantee regarding product up time. Time-lapse videos can be viewed using Chrome, Firefox or Opera browser application on smartphone, tablet, desktop and laptop devices. Additional browser support for Safari and Internet Explorer may be added later.

Any use of trade, firm, or product names is for descriptive purposes only and does not imply endorsement by the U.S. Government.

This station managed by the Wisconsin Water Science Center - Madison WI.

Available Parameters Available Period

2024-08-08  2024-12-06
1986-10-01  2024-12-06
2017-10-01  2024-12-06
2021-12-05  2024-12-06







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Precipitation, total, inches

Most recent instantaneous value: 0.00 12-06-2024   02:00 CST
Graph of  Precipitation, total, inches

Add up to 2 more sites and replot for "Precipitation, total, inches"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages

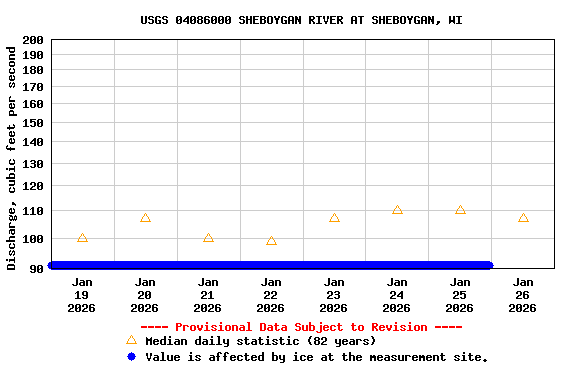

Discharge, cubic feet per second

Most recent instantaneous value: Ice 12-06-2024   02:00 CST
Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Dec 6 based on 81 water years of record more
Most Recent
Instantaneous
Value Dec 6
Min
(1951)
25th
percen-
tile
Median Mean 75th
percen-
tile
Max
(1983)
-- unavailable -- 19.0 89 130 195 219 1260

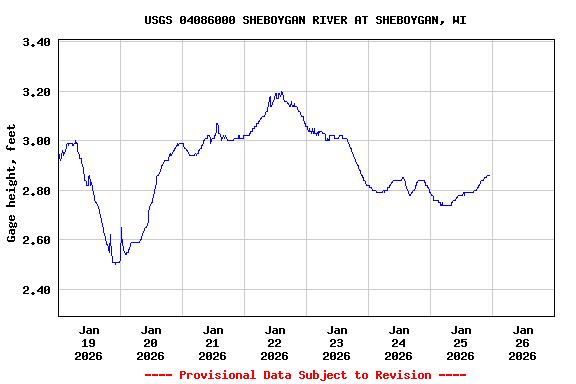

Gage height, feet

Most recent instantaneous value: 4.41 12-06-2024   02:00 CST
Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages

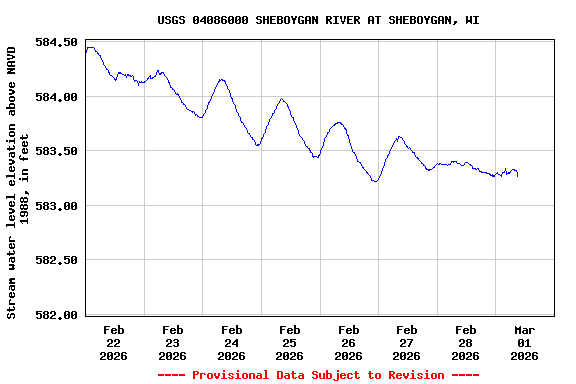

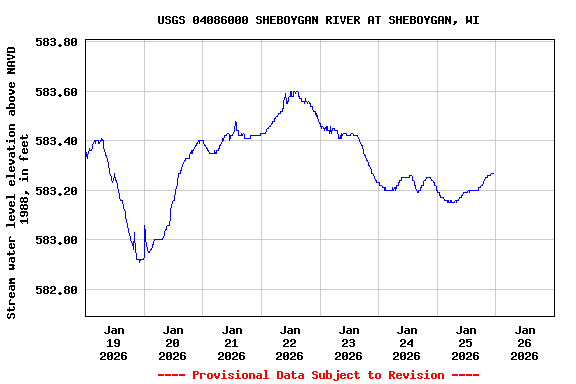

Stream water level elevation above NAVD 1988, in feet

Most recent instantaneous value: 584.82 12-06-2024   02:00 CST
Graph of  Stream water level elevation above NAVD 1988, in feet

Add up to 2 more sites and replot for "Stream water level elevation above NAVD 1988, in feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages
