USGS 01427207 DELAWARE RIVER AT LORDVILLE NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



> Site Information
LOCATION.--Lat 41°52'02.2", long 75°12'49.5" referenced to North American Datum of 1983, Wayne County, PA, Hydrologic Unit 02040101, on right bank at Lordville-Equinunk Interstate Bridge at Lordville, 9.7 mi southeast of Hancock.
DRAINAGE AREA.--1,590 mi².
PERIOD OF RECORD.--Maximum only--June 2006, July 2006 to current year.
REVISIONS HISTORY.--WDR NY-82-1: Drainage area.
GAGE.--Water-stage recorder and crest stage gage. Datum of gage is 835.00 ft above NGVD of 1929 and 834.51 ft above NAVD of 1988.
REMARKS.--Entire flow from 371 mi² of drainage area controlled by Pepacton Reservoir (station 01416900), and entire flow from 454 mi² of drainage area controlled by Cannonsville Reservoir (station 01424997). Part of flow from these reservoirs diverted for New York City municipal supply. Remainder of flow (except for conservation releases and spill) impounded for release during periods of low flow in the lower Delaware River basin, as directed by the Delaware River Master.
Water Years 2014-19: Records good except those for estimated daily discharges, which are poor.
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge 126,000 ft³/s, June 28, 2006, gage height, 28.87 ft, from floodmark, from rating curve extended above 39,000 ft³/s on basis of runoff comparisons with nearby stations; minimum discharge, 371 ft³/s, Sept. 6, 2008, Sept. 28, 2010; minimum gage height, 5.37 ft, Sept. 28, 2010.
EXTREMES OUTSIDE PERIOD OF RECORD.--Maximum discharge, 95,600 ft³/s, Sept. 18, 2004, gage height, 23.53 ft, from floodmark, and 102,000 ft³/s, Apr. 3, 2005, gage height, 25.20 ft, from floodmark, both by runoff comparisons with nearby stations.
PERIOD OF DAILY RECORD1.--

WATER TEMPERATURE: October 1967 to August 1971, June 1973 to May 1996, July 2006 to current year.

SPECIFIC CONDUCTANCE: June 2019 to current year.


INSTRUMENTATION1.--Water-temperature and specific conductance satellite and telephone telemeter provides 15-minute-interval readings. From June 1987 to June 1989, water-temperature satellite telemeter provided one-hour-interval readings. From June 1973 to November 1989, water-temperature recorder provided one-hour-interval readings. Prior to August 1971, water-temperature recorder provided continuous recordings.
REMARKS1.--Temperature readings prior to Oct. 1, 2007, rounded to the nearest 0.5 °C. Water temperature is affected by release of water from upstream reservoir. Interruption of record was due to malfunction of recording instrument.
EXTREMES FOR PERIOD OF DAILY RECORD1.--WATER TEMPERATURE: Prior to Oct. 1, 2007--Maximum (water years 1968-70, 1973, 1975-86, 1989, 1991-95, 2007), 30.5 °C, June 16, 1976, July 10, 1981; minimum (water years 1968-71, 1974, 1977-78, 1980-96, 2007), 0.0 °C on many days during winter period. WATER TEMPERATURE: After Oct. 1, 2007--Maximum, 27.4 °C, June 10, 2008; minimum, -0.1 °C, Nov. 24, Dec. 12, 25, 26, 2013, Jan. 11, 2014, Jan. 12, 18, Feb. 11, 17, 18, 2016, and many days during 2017-19 winter periods. SPECIFIC CONDUCTANCE: Maximum, 112 uS/cm at 25 °C, Sept. 30, 2019; minimum, 77 uS/cm at 25 °C, June 14, 2019.
1 Water-Quality Records
> WaterNow – get the latest gage data from your mobile phone or email.
> Rating Information
This station managed by the NY Water Science Center Milford.

Available Parameters Available Period

2007-10-01  2021-04-13
2021-04-09  2021-04-13
2006-10-01  2021-04-13
2007-10-01  2021-04-13
2019-06-13  2021-04-13
2021-04-09  2021-04-13
2021-04-09  2021-04-13
2021-04-09  2021-04-13
2021-04-09  2021-04-13
2021-04-09  2021-04-13







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Temperature, water, degrees Celsius

Most recent instantaneous value: 10.9 04-13-2021   14:00 EST
Graph of  Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Temperature, water, degrees Celsius, Bridge

Most recent instantaneous value: 11.2 04-13-2021   14:00 EST
Graph of  Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius, Bridge"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Discharge, cubic feet per second

Most recent instantaneous value: 2710 04-13-2021   14:00 EST

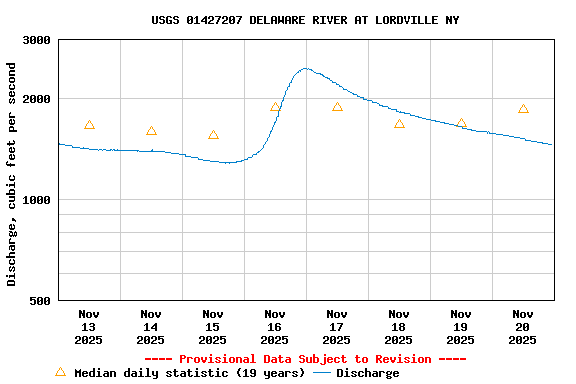

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Apr 13 based on 13 water years of record more
Min
(2012)
Most Recent
Instantaneous
Value Apr 13
25th
percen-
tile
Median Mean 75th
percen-
tile
Max
(2015)
914 2710 2910 4160 4220 6020 6210


Gage height, feet

Most recent instantaneous value: 7.48 04-13-2021   14:00 EST

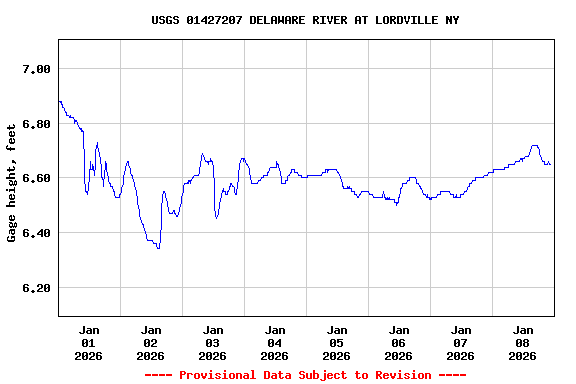

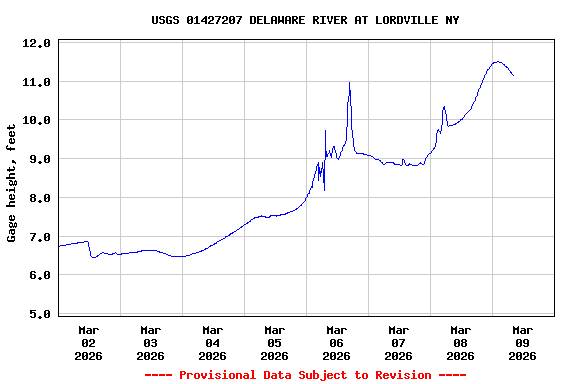

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius

Most recent instantaneous value: 90 04-13-2021   14:00 EST
Graph of  Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius

Add up to 2 more sites and replot for "Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius, Bridge

Most recent instantaneous value: 88 04-13-2021   14:00 EST
Graph of  Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius

Add up to 2 more sites and replot for "Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius, Bridge"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Dissolved oxygen, water, unfiltered, milligrams per liter, Bridge

Most recent instantaneous value: 12.5 04-13-2021   14:00 EST
Graph of  Dissolved oxygen, water, unfiltered, milligrams per liter

Add up to 2 more sites and replot for "Dissolved oxygen, water, unfiltered, milligrams per liter, Bridge"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Dissolved oxygen, water, unfiltered, percent of saturation, Bridge

Most recent instantaneous value: 114 04-13-2021   14:00 EST
Graph of  Dissolved oxygen, water, unfiltered, percent of saturation

Add up to 2 more sites and replot for "Dissolved oxygen, water, unfiltered, percent of saturation, Bridge"

?



Create presentation-quality / stand-alone graph.

See this graph on the Beta Monitoring Location Pages




pH, water, unfiltered, field, standard units, Bridge

Most recent instantaneous value: 8.2 04-13-2021   14:00 EST

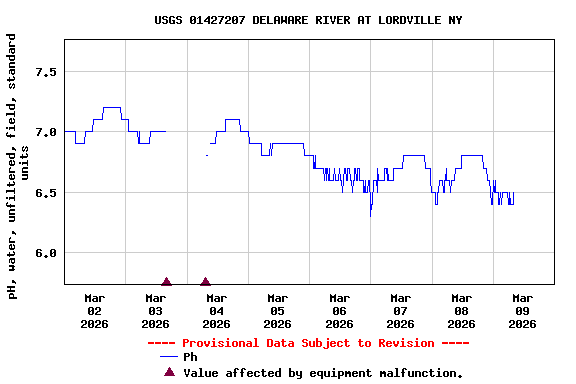

Graph of  pH, water, unfiltered, field, standard units

Add up to 2 more sites and replot for "pH, water, unfiltered, field, standard units, Bridge"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), Bridge

Most recent instantaneous value: 2.4 04-13-2021   14:00 EST
Graph of  Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Add up to 2 more sites and replot for "Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), Bridge"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages
