ALL DATA ARE EASTERN STANDARD TIME

USGS 01310740 REYNOLDS CHANNEL AT POINT LOOKOUT NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text
The 6-minute meteorological data for this station are temporary and will only be displayed for 120 days. Although the instrumentation is calibrated at least once/year, the temporary classification means that documented routine inspections and other quality assurance measures are not performed that would make the data acceptable for archival, retrieval, or future use in general scientific or interpretive studies.



LOCATION.--Lat 40°35'36", long 73°35'03" referenced to North American Datum of 1927, Nassau County, NY, Hydrologic Unit 02030202, at Town of Hempstead East Marina, 750 ft east of Loop Parkway Bridge, in Point Lookout. Water-quality monitor at site 100 ft north.
PERIOD OF RECORD.--December 1997 to current year. January 1974 to June 1994, in files of Town of Hempstead Department of Conservation & Waterways. Precipitation, wind speed and direction, air temperature, relative humidity, and barometric pressure records for March 1998 to current year, and solar radiation records for August 2004 to current year, are unpublished and available in files of the Geological Survey.
GAGE.--Water-stage recorder. Datum of gage is NGVD of 1929. January 1974 to June 1994, water-stage recorder at site 150 ft northeast.
REMARKS.--ELEVATION WY 2014: Records rated good, except those for Oct. 1-22, Oct. 28 to Jan. 19, Jan. 29, June 21 to July 6, Aug. 12-18, 26-31, Sept. 11-20, which are fair, Oct. 23-27, Jan. 20-28, Jan. 30 to June 20, July 31 to Aug. 11, Sept. 1-10, 29-30, which are poor and July 7-30 which were deleted. Periods of missing record were estimated with MISTE using a linear regression with 01310521 and 01311143. Satellite and telephone elevation, precipitation, and wind speed and direction telemeters at station. Telephone telemeter for air temperature, relative humidity, barometric pressure, and solar radiation parameters at station.
EXTREMES FOR PERIOD OF RECORD.--Maximum elevation, 9.90 ft, Oct. 29, 2012; minimum elevation, -4.28 ft, Mar. 9, 2005.
EXTREMES OUTSIDE PERIOD OF RECORD.--Storm tide of Sept. 27, 1985, reached an elevation of 7.3 ft, from information provided by Town of Hempstead Department of Conservation & Waterways. Storm tide of Dec. 11, 1992, reached an elevation of 7.3 ft, from high-water mark at site 4.0 mi west. Minimum elevation recorded, -4.9 ft, Jan. 11, 1978, Mar. 16, 1980, from information provided by Town of Hempstead Department of Conservation & Waterways.
PERIOD OF RECORD1.--October 2004 to current year. Water temperature records for March 1998 to September 2004, and sampling depth records for October 2004 to current year are unpublished and available in files of the Geological Survey.
PERIOD OF DAILY RECORD1.--
WATER TEMPERATURE: October 2004 to current year.
SALINITY: October 2004 to current year.
DISSOLVED OXYGEN: October 2004 to current year.
TURBIDITY: October 2004 to current year.
CHLOROPHYLL: August 2006 to current year.
INSTRUMENTATION1.--Water-quality monitor provides 12-minute-interval readings collected from 1.6 ft above bottom. October 2004 to February 2005, water-quality monitor provided 6-minute-interval readings. Salinity record computed from specific-conductance readings.
REMARKS1.--Telephone telemeter for water temperature, specific conductance, dissolved oxygen, turbidity, chlorophyll, and sampling depth parameters at station. Interruptions of record were due to malfunction of water-quality monitor or sensors.
WATER TEMPERATURE WY 2016: Records excellent.
SALINITY WY 2016: Records excellent, except those for Nov. 8-10, May 3 to June 2, June 29 to July 3, July 8-15, Aug. 3, Sept. 7-19, which are good, July 4-5, 16-21, Aug. 4, Sept. 20-29, which are fair, and July 22 to Aug. 2, Aug. 5-8, which are poor.
DISSOLVED OXYGEN WY 2016: Records excellent, except those for Oct. 11 to Nov. 10, Dec. 19 to Jan. 6, Apr. 5-15, July 1-5, and July 20 to Aug. 2, which are good.
TURBIDITY WY 2016: Records excellent, except those for Oct. 15, 17, 20-21, 24-27, Nov. 2-5, 7, 10, Apr. 20-28, June 23 to July 5, July 17-26, which are good, Oct. 28 to Nov. 1, Nov. 6, 8-9, Apr. 29 to May 3, July 27 to Aug. 2, which are fair, May 4-25, which are poor, and May 26 to June 2, which were deleted.
CHLOROPHYLL WY 2016: Records excellent, except those for Nov. 5, 7-11, Feb. 6 to Mar. 2, Apr. 19-29, May 3-5, July 7-8, which are good, Apr. 30 to May 2, May 6-9, July 9-10, which are fair, May 10 to June 2, July 11-16, which are poor and July 17 to Aug. 2 which were deleted.
EXTREMES FOR PERIOD OF RECORD1.--WATER TEMPERATURE: Maximum, 27.9 °C, July 18, 2013, Aug. 14, 2016; minimum, -2.1 °C, Jan. 16, 17, 30, 31, 2004.
SALINITY: Maximum, 35 psu, Aug. 19, 2014; minimum, 21 psu, Oct. 14, 15, 2005.
DISSOLVED OXYGEN: Maximum, 15.9 mg/L, Mar. 1, 2007; minimum, 1.5 mg/L, Sept. 3, 2014.
TURBIDITY: Maximum, 410 FNU, Sept. 14, 2013; minimum, <0.1 FNU several days each year 2005-2016.
CHLOROPHYLL: Maximum, 110 ug/L, May 22, 2014; minimum, <0.1 ug/L many days each year 2006-2016.
1 Water-Quality Records

Peak Flow and Stage Information

Webcam view of Reynolds Channel Picture updated hourly

Webcam view of Atlantic Ocean shore

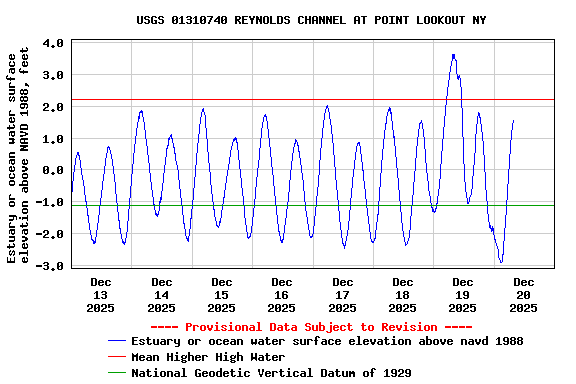

Elevation observations and tidal predictions for this station are reported to NGVD 1929. To convert data to NAVD 1988 subtract 1.13 ft. To convert data to MHHW datum subtract 3.53 ft. To convert data to MLLW datum add 1.10 ft. These corrections vary from site to site.

NGVD 1929 is the National Geodetic Vertical Datum of 1929, formerly called "mean sea level" or "Sea Level Datum of 1929." NGVD 1929 was a general adjustment of the first-order level nets fit to mean sea level at 26 tide gages in the US and Canada.
NAVD 1988 is the North American Vertical Datum of 1988, which is a geodetic datum derived from a general adjustment of the first-order level nets fit to 1 tide gage in eastern Canada.
MHHW is mean higher high water, which is a site-specific datum determined by averaging the highest of the 2 high tides that occur each day over a 19-year tidal epoch. For tide gages with less than 19 years of record, this datum is estimated by correlation with long-term tide gages.
MLLW is mean lower low water, which is a site-specific datum determined by averaging the lowest of the 2 low tides that occur each day over a 19-year tidal epoch. For tide gages with less than 19 years of record, this datum is estimated by correlation with long-term tide gages.


Additional sensor graph(s) available (click on graph or sensor name)

Water elevation, astronomical-tide elevation, and residual water level
Water elevation, astronomical-tide
elevation, and residual water level

Graph updated every 15 minutes
Alternate link to graph
Wind speed, wind gust speed, and barometric pressure
Wind speed, wind gust speed,
and barometric pressure

Graph updated hourly
Alternate link to graph

Gage PhotoStation image



This station managed by the NY Water Science Center Coram.

Available Parameters Available Period
All 20 Available Parameters for this site

00003 Sampling depth, monitor 2017-03-23  2017-07-21
00010 Temperature, water, monitor 2007-10-01  2017-07-21
00020 Temperature, air 2017-03-23  2017-07-21
00036 Wind direction 2017-03-23  2017-07-21
00045 Precipitation 2017-03-23  2017-07-21
00052 Relative humidity 2017-03-23  2017-07-21

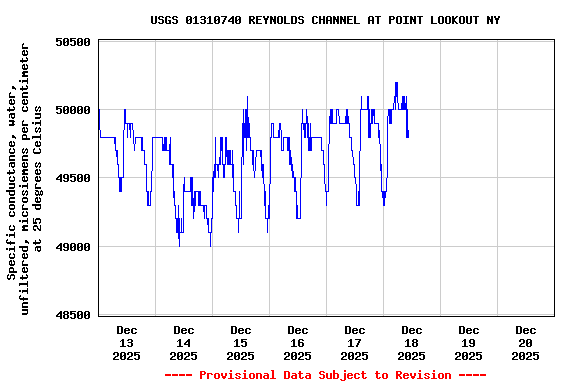

00095 Specific cond at 25C, monitor 2007-10-01  2017-06-29
00300 Dissolved oxygen, monitor 2007-10-01  2017-07-21
00400 pH, monitor 2017-05-23  2017-07-21
61727 Wind gust speed 2017-03-23  2017-07-21
61729 Wind gust direction 2017-03-23  2017-07-21
62361 Chlorophyll, in situ, monitor 2007-10-01  2017-07-21
62608 Solar radiation down 2017-03-23  2017-07-21
62619 Elevation, ocean/est 2007-10-01  2017-07-21
62619 Elevation, ocean/est, tidal prediction 2017-03-23  2017-09-30
63680 Turbidity, Form Neph, monitor 2007-10-01  2017-07-21
75969 BarometricPressUncor 2017-03-23  2017-07-21
82127 Wind speed 2017-03-23  2017-07-21

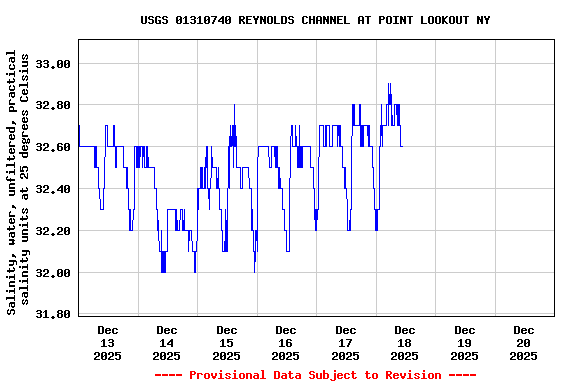

90860 Salinity, at 25C, monitor 2007-10-01  2017-06-15
99067 Observed elev diff 2017-03-23  2017-07-21

Graph
Graph w/ stats
Graph w/o stats
Graph w/ (up to 3) parms
Table
Tab-separated
Days  (7)


  -- or --
Begin date


End date


Summary of all available data for this site
Instantaneous-data availability statement


Sampling depth, feet, monitor

Most recent instantaneous value: 9.36 07-21-2017   04:18 EST
Graph of  Sampling depth, feet

Add up to 2 more sites and replot for "Sampling depth, feet, monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.

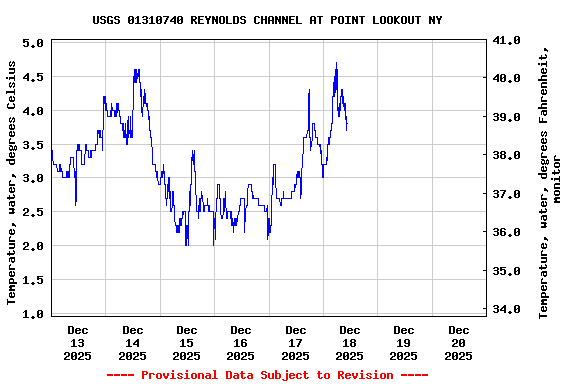

Temperature, water, degrees Celsius, monitor

Most recent instantaneous value: 21.6 07-21-2017   04:18 EST
Graph of  Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius, monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




Temperature, air, degrees Celsius

Most recent instantaneous value: 25.3 07-21-2017   04:18 EST
Graph of  Temperature, air, degrees Celsius

Add up to 2 more sites and replot for "Temperature, air, degrees Celsius"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Wind direction, degrees clockwise from true north

Most recent instantaneous value: 284 07-21-2017   04:18 EST
Graph of  Wind direction, degrees clockwise from true north

Add up to 2 more sites and replot for "Wind direction, degrees clockwise from true north"

?
 Add site numbers


Create presentation-quality / stand-alone graph.



Precipitation, total, inches

-- Data temporarily unavailable for the time period specified --


Relative humidity, percent

Most recent instantaneous value: 73.0 07-21-2017   04:18 EST
Graph of  Relative humidity, percent

Add up to 2 more sites and replot for "Relative humidity, percent"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Dissolved oxygen, water, unfiltered, milligrams per liter, monitor

Most recent instantaneous value: 7.7 07-21-2017   04:18 EST
Graph of  Dissolved oxygen, water, unfiltered, milligrams per liter

Add up to 2 more sites and replot for "Dissolved oxygen, water, unfiltered, milligrams per liter, monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




pH, water, unfiltered, field, standard units, monitor

Most recent instantaneous value: 8.0 07-21-2017   04:18 EST
Graph of  pH, water, unfiltered, field, standard units

Add up to 2 more sites and replot for "pH, water, unfiltered, field, standard units, monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




Wind gust speed, air, knots

Most recent instantaneous value: 2.50 07-21-2017   04:18 EST
Graph of  Wind gust speed, air, knots

Add up to 2 more sites and replot for "Wind gust speed, air, knots"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Wind gust direction, air, degrees clockwise from true north

Most recent instantaneous value: 292 07-21-2017   04:18 EST
Graph of  Wind gust direction, air, degrees clockwise from true north

Add up to 2 more sites and replot for "Wind gust direction, air, degrees clockwise from true north"

?
 Add site numbers


Create presentation-quality / stand-alone graph.

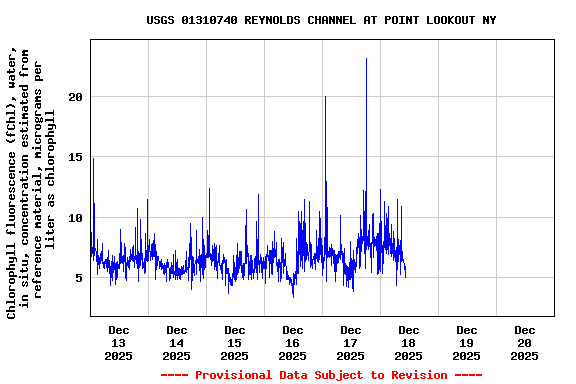

Chlorophyll, total, water, fluorometric, 650-700 nanometers, in situ sensor, micrograms per liter, monitor

Most recent instantaneous value: 12.0 07-21-2017   04:18 EST
Graph of  Chlorophyll, total, water, fluorometric, 650-700 nanometers, in situ sensor, micrograms per liter

Add up to 2 more sites and replot for "Chlorophyll, total, water, fluorometric, 650-700 nanometers, in situ sensor, micrograms per liter, monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Total solar radiation (direct + diffuse radiation on a horizontal surface), watts per square meter

Most recent instantaneous value: 1 07-21-2017   04:18 EST
Graph of  Total solar radiation (direct + diffuse radiation on a horizontal surface), watts per square meter

Add up to 2 more sites and replot for "Total solar radiation (direct + diffuse radiation on a horizontal surface), watts per square meter"

?
 Add site numbers


Create presentation-quality / stand-alone graph.

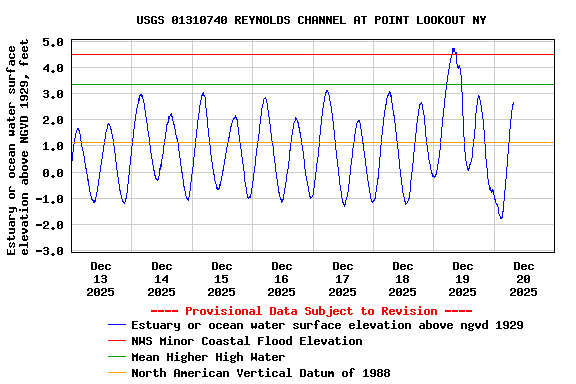

Estuary or ocean water surface elevation above NGVD 1929, feet

Most recent instantaneous value: 3.23 07-21-2017   05:18 EST
Graph of  Estuary or ocean water surface elevation above NGVD 1929, feet

Add up to 2 more sites and replot for "Estuary or ocean water surface elevation above NGVD 1929, feet"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




Estuary or ocean water surface elevation above NGVD 1929, feet, tidal prediction

Most recent instantaneous value: 2.71 07-21-2017   05:42 EST
Graph of  Estuary or ocean water surface elevation above NGVD 1929, feet

Add up to 2 more sites and replot for "Estuary or ocean water surface elevation above NGVD 1929, feet, tidal prediction"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

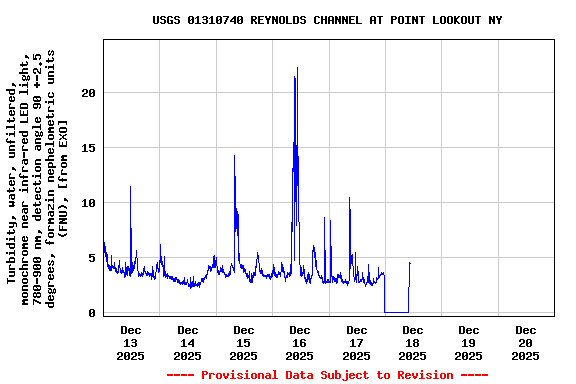

Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), monitor

Most recent instantaneous value: 3.4 07-21-2017   04:18 EST
Graph of  Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Add up to 2 more sites and replot for "Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), monitor"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert




Barometric pressure, not corrected to sea level, millibars

Most recent instantaneous value: 1013 07-21-2017   04:18 EST
Graph of  Barometric pressure, not corrected to sea level, millibars

Add up to 2 more sites and replot for "Barometric pressure, not corrected to sea level, millibars"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Wind speed, knots

Most recent instantaneous value: 2.00 07-21-2017   04:18 EST
Graph of  Wind speed, knots

Add up to 2 more sites and replot for "Wind speed, knots"

?
 Add site numbers


Create presentation-quality / stand-alone graph.




Difference between observed and predicted water surface elevation, feet

Most recent instantaneous value: 0.45 07-21-2017   05:18 EST
Graph of  Difference between observed and predicted water surface elevation, feet

Add up to 2 more sites and replot for "Difference between observed and predicted water surface elevation, feet"

?
 Add site numbers


Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert
