USGS 04213500 CATTARAUGUS CREEK AT GOWANDA NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



> Site Information
LOCATION.--Lat 42°27'48", long 78°56'03" referenced to North American Datum of 1983, Erie County, NY, Hydrologic Unit 04120102, on right bank 15 ft upstream from bridge on State Highways 39 and 62 at Gowanda, 4.2 mi downstream from South Branch, and 17.8 mi upstream from mouth.
DRAINAGE AREA.--436 mi².
PERIOD OF RECORD.--November 1939 to March 1998, April to September 1998 (annual maximum only), October 1999 to current year.
REVISIONS HISTORY.--WSP 2112: Datum. WDR NY-71-1: 1956 (M). WDR NY-74-1: 1940-42 (P). WDR NY-82-3: Drainage area. WDR-US-2009: 1990-98 (P), 2000-08 (P).
GAGE.--Water-stage recorder. Datum of gage is 738.85 ft above NGVD of 1929 and 738.36 ft above NAVD of 1988. Prior to May 29, 2011, at site 470 ft downstream at same datum.
REMARKS.--Prior to 1998, diurnal fluctuation at low and medium flows caused by powerplant 20 mi upstream from station.
Water Years 2014-19: Records good except those for estimated daily discharges, which are fair.
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge, 34,600 ft³/s, Mar. 7, 1956, gage height, 14.14 ft; minimum discharge, about 6 ft³/s, Aug. 21, 1941, result of regulation; minimum gage height, 0.90 ft, Oct. 26, 1951.
PERIOD OF DAILY RECORD1.-- WATER TEMPERATURE: June 2011 to current year. SPECIFIC CONDUCTANCE: June 2011 to current year. pH: June 2011 to current year. DISSOLVED OXYGEN: June 2011 to current year. TURBIDITY: June 2011 to current year.
INSTRUMENTATION1.--Refrigerated automatic sampler since June 2011. Multi-parameter water-quality sonde measures water temperature, specific conductance, pH, dissolved oxygen, and turbidity at 15-minute intervals since June 2011.
COOPERATION1.--In cooperation with the U.S. Environmental Protection Agency's Great Lakes Restoration Initiative (GLRI).
EXTREMES FOR PERIOD OF DAILY RECORD1.--
WATER TEMPERATURE: Maximum, 33.0°C, July 22, 2011; minimum, -0.1°C, on several days.
SPECIFIC CONDUCTANCE: Maximum, 590 uS/cm @ 25°C, Sept. 20, 21, 2011; minimum, 122 uS/cm @ 25°C, Oct. 28, 29 2011.
pH: Maximum, 8.9, Apr. 29, 30, May 1, 2013, Apr. 9, 10, 15, 16, 17, 2016; minimum, 7.7, Jan 29, 2013, Nov. 5, 2017, Jan. 24, 25, 28, 29, 2018, Oct. 6, 7, 2018.
DISSOLVED OXYGEN: Maximum, 15.4 mg/L, Jan. 5, 2016; minimum, 6.7 mg/L, July 17, 2012.
TURBIDITY: June 1, 2011 to June 6, 2016: Maximum, >1,380 FNU, on several days; minimum, 3.0 FNU, Aug. 21, 22, 2013. June 7, 2016 to current year: Maximum, >4,000 FNU, Sept. 14, 2017, June 1, 2018; minimum, 2.0 FNU, Oct. 2, 2017. [>, actual value is known to be greater than the value shown]
1 Water-Quality Records
> WaterNow – get the latest gage data from your mobile phone or email.
> Rating Information
This station managed by the NY Water Science Center Ithaca.

Available Parameters Available Period

2011-06-02  2020-09-20
1990-10-01  2020-09-20
2007-10-01  2020-09-20
2011-06-03  2020-09-20
2011-06-03  2020-09-20
2011-06-03  2020-09-20
2011-06-03  2020-09-20
2020-05-23  2020-09-20







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Temperature, water, degrees Celsius

Most recent instantaneous value: 11.2 09-20-2020   07:15 EST

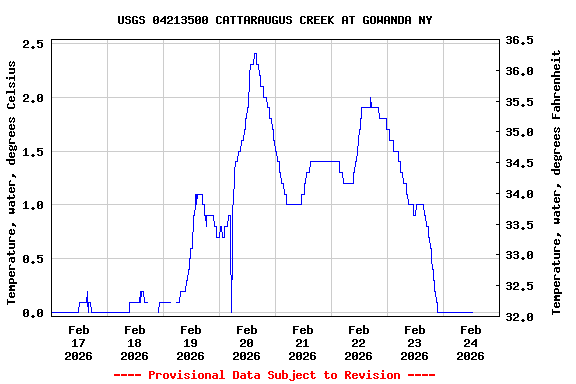

Graph of  Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages

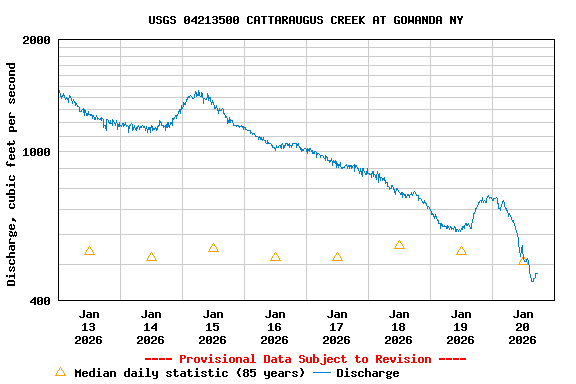

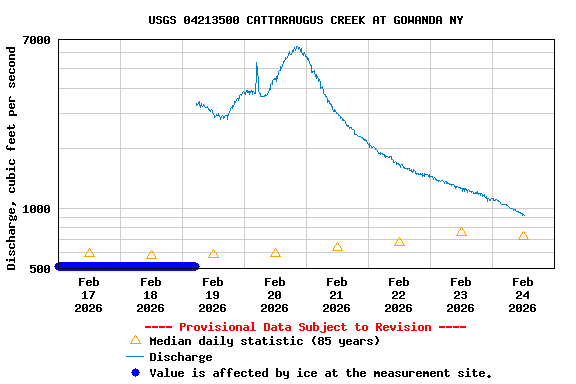

Discharge, cubic feet per second

Most recent instantaneous value: 102 09-20-2020   07:15 EST
Graph of

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Sep 20 based on 78 water years of record more
Min
(1941)
Most Recent
Instantaneous
Value Sep 20
25th
percen-
tile
Median 75th
percen-
tile
Mean Max
(1977)
65.0 102 116 180 321 420 12600


Gage height, feet

Most recent instantaneous value: 1.13 09-20-2020   07:15 EST

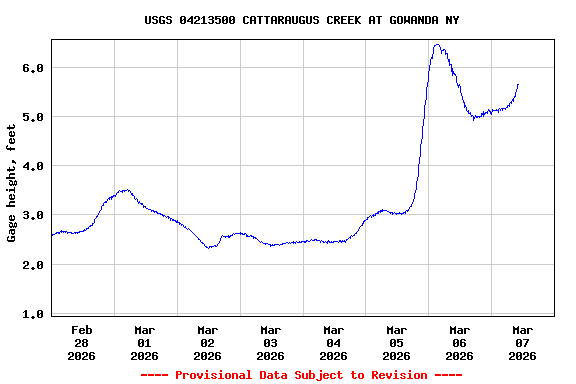

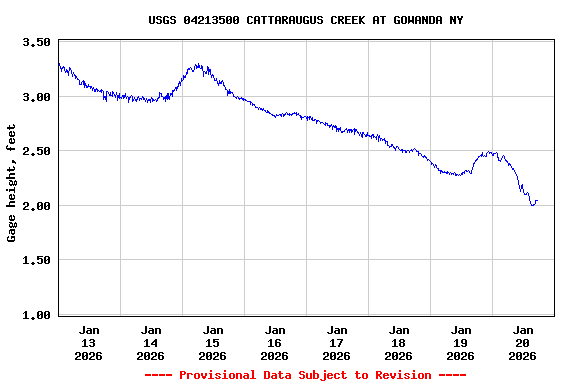

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius

Most recent instantaneous value: 475 09-20-2020   07:15 EST

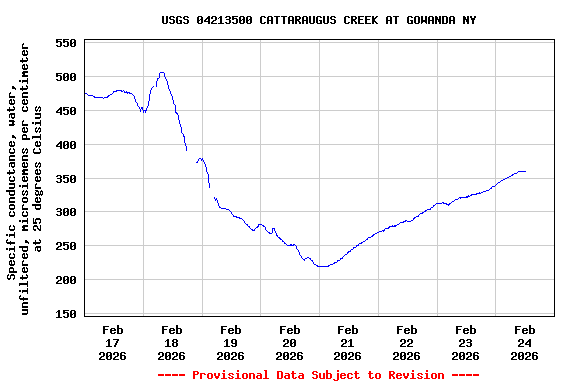

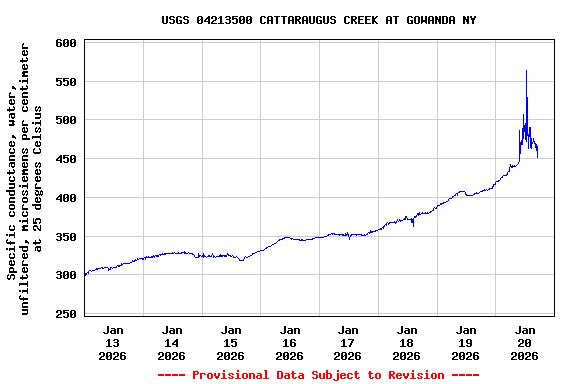

Graph of  Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius

Add up to 2 more sites and replot for "Specific conductance, water, unfiltered, microsiemens per centimeter at 25 degrees Celsius"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages

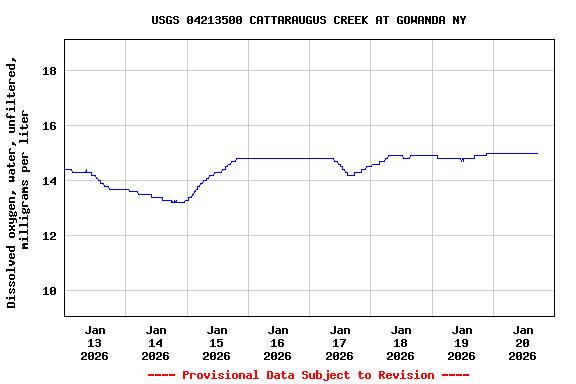

Dissolved oxygen, water, unfiltered, milligrams per liter

Most recent instantaneous value: 10.9 09-20-2020   07:15 EST
Graph of  Dissolved oxygen, water, unfiltered, milligrams per liter

Add up to 2 more sites and replot for "Dissolved oxygen, water, unfiltered, milligrams per liter"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages

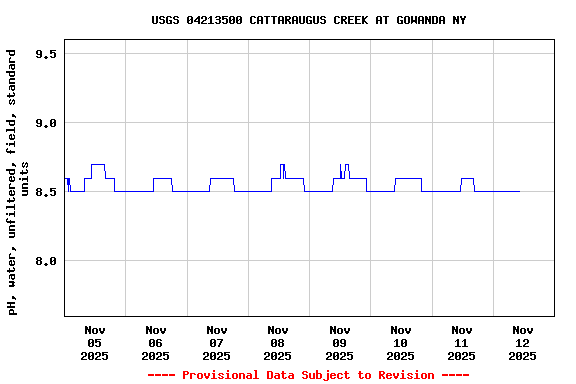

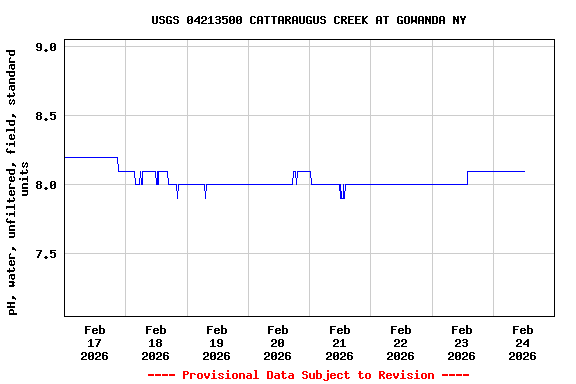

pH, water, unfiltered, field, standard units

Most recent instantaneous value: 8.4 09-20-2020   07:15 EST

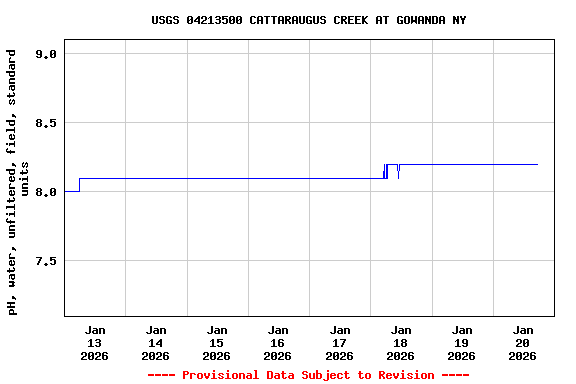

Graph of  pH, water, unfiltered, field, standard units

Add up to 2 more sites and replot for "pH, water, unfiltered, field, standard units"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages




Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Most recent instantaneous value: 9.5 09-20-2020   07:15 EST

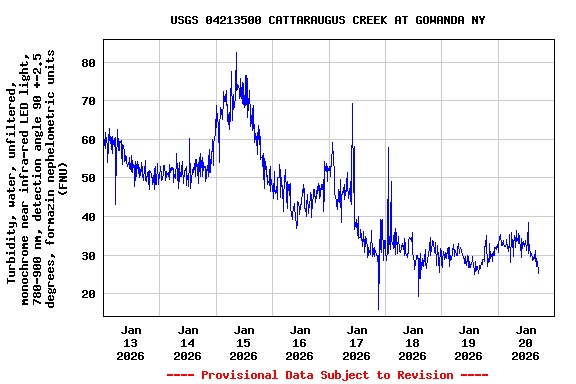

Graph of  Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)

Add up to 2 more sites and replot for "Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU)"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Beta Monitoring Location Pages

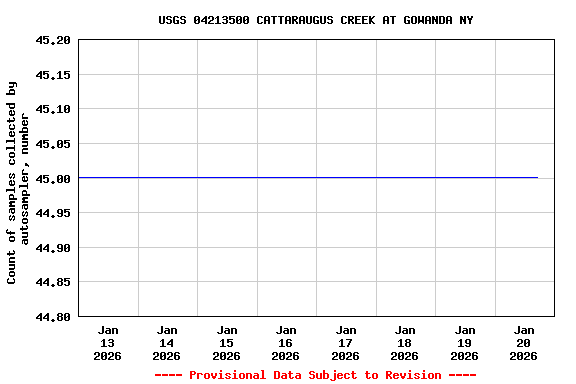

Count of samples collected by autosampler, number

Most recent instantaneous value: 0 09-20-2020   07:15 EST
Graph of  Count of samples collected by autosampler, number

Add up to 2 more sites and replot for "Count of samples collected by autosampler, number"

?



Create presentation-quality / stand-alone graph.

See this graph on the Beta Monitoring Location Pages
