USGS 01547480 Foster Joseph Sayers Lake near Blanchard, PA
Funding for this site is provided by:
STATION.--01547480 FOSTER JOSEPH SAYERS LAKE
LOCATION.--Lat 41`02'53", long
77`36'35", Centre County, Hydrologic Unit 02050204, at Foster
Joseph Sayers Dam on Bald Eagle Creek, 1.0 mi upstream from Marsh
Creek, and 1.2 mi south of Blanchard.
DRAINAGE AREA.--339 square miles.
PERIOD OF RECORD.--March 1971 to current year.
GAGE.--Water-stage recorder and heated tipping bucket
precipitation gage. Datum of gage is U.S. Army Corps of Engineers local
project datum. Prior to water year 2007, the datum was incorrectly
reported as NGVD 1929.
REMARKS.--Reservoir formed by an earthfill dam with
ungaged concrete ogee weir at elevation 657.00 ft with abutting
concrete gravity walls and partially paved exit channel. Storage began
in March 1971. Capacity at elevation 657.00 ft is 99,100 acre-ft. Dead
storage is 25 acre-ft. Ordinary minimum (conservation) pool elevation
is 610.00 ft capacity, 6,300 acre-ft. Reservoir used for flood control
and recreation. Regulation is accomplished by two gates. Satellite
telemetry at station.

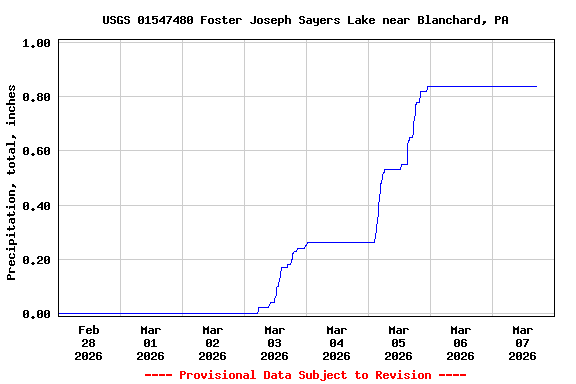

|The 15-minute precipitation data for this station are
temporary and will only be displayed for 120 days. Time series
of 1-hour or cumulative daily values will NOT be available for
retrieval following the 120-day display period. Although the
instrumentation is calibrated at least once a year, the temporary
classification means that documented routine inspections and other
quality assurance measures are not performed that would make the
data acceptable for archival, retrieval, or future use in general
scientific or interpretive studies.
--Funding for the operation of this
station is provided by the U.S. Army Corps of Engineers, Baltimore
This station managed by the PAWSC Williamsport Field Office.
Summary of all available data for this site
Instantaneous-data availability statement
Most recent instantaneous value: 0.00 01-30-2023 23:00 EST
Most recent instantaneous value: 625.05 01-30-2023 23:00 EST
Most recent instantaneous value: 625.09 01-30-2023 23:00 EST
