--03025500 ALLEGHENY RIVER AT FRANKLIN,
--Lat 41`23'22", long
79`49'14", Venango County, Hydrologic Unit 05010003, on right
bank at upstream side of Eighth Street bridge on U.S. Highway 322 at
Franklin, 1,000 ft downstream from French Creek, and at mile
--5,982 square miles.
PERIOD OF RECORD.
--October 1914 to current year.
Monthly discharge only for some periods, published in WSP 1305.
Gage-height records collected at same site since April 1905 are
contained in reports of U.S. Weather Bureau.
--Water-stage recorder and heated tipping bucket
precipitation gage. Datum of gage is 955.84 ft above National Geodetic
Vertical Datum of 1929. Prior to Sept. 16, 1932, non-recording gage,
and Sept. 16-30, 1932, water-stage recorder, at present site at datum
2.00 ft higher. Satellite telemetry at station.
--Station established and maintained by
the U.S. Geological Survey. Funding for the operation of this station
is provided by the U.S. Army Corps of Engineers, Pittsburgh District,
the Pennsylvania Department of Environmental Protection and the U.S.
--Flow regulated by Allegheny Reservoir 74 mi
upstream since 1965, by Chautauqua Lake since 1941, by Tionesta Lake
since 1940, by Union City Reservoir since 1971, and by Woodcock Creek
Lake since January 1974.
GAGE HEIGHTS OF IMPORTANCE.-
Supplied by NWS:

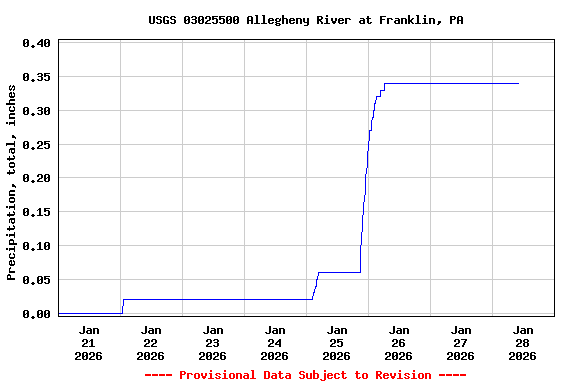

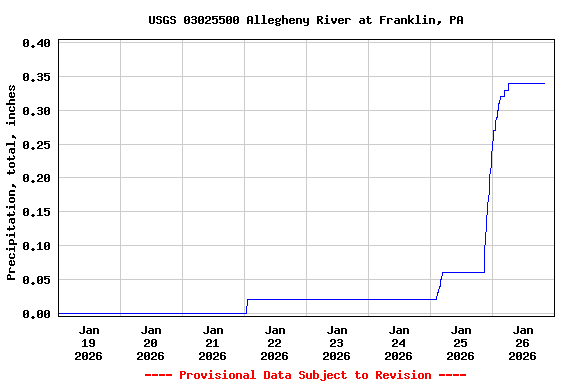

|The 1-hour precipitation data for this station are
temporary and will only be displayed for 120 days. Time series
of 1-hour or cumulative daily values will NOT be available for
retrieval following the 120-day display period. Although the
instrumentation is calibrated at least once a year, the temporary
classification means that documented routine inspections and other
quality assurance measures are not performed that would make the
data acceptable for archival, retrieval, or future use in general
scientific or interpretive studies.
Action stage-13 ft; Flood stage-17
ft; Moderate flood stage-19 ft; Major flood stage-21 ft.
