USGS 01350000 SCHOHARIE CREEK AT PRATTSVILLE NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



LOCATION.--Lat 42°19'10", long 74°26'12" referenced to North American Datum of 1983, Greene County, NY, Hydrologic Unit 02020005, on left bank 100 ft upstream from bridge on State Highway 23 in Prattsville, 0.2 mi upstream from Schoharie Reservoir, 0.2 mi downstream from Huntersfield Creek, and 1.6 mi downstream from Batavia Kill.
DRAINAGE AREA.--237 mi².
PERIOD OF RECORD.--November 1902 to current year.
REVISIONS HISTORY.--WSP 1432: 1937-38. WDR NY-87-1: 1956(M), 1972(M), 1974-76(M), 1978(P), 1979(M), 1980(P), 1981(M), 1984(M). WDR NY-90-1: Drainage area. WDR-US-2012: 2011.
GAGE.--Water-stage recorder and crest-stage gage. Datum of gage is 1,131.57 ft above NGVD of 1929. Prior to Oct. 1, 1915, nonrecording gage, and Oct. 1, 1915 to July 17, 1936, water-stage recorder, at old highway bridge 80 ft upstream, and July 18, 1936 to July 15, 1954, water-stage recorder at site 0.2 mi downstream, all at datum 1.56 ft lower.
REMARKS.--Seasonal diversion for snowmaking by Hunter Mountain ski area near Tannersville and Ski Windham ski area at Windham.
Water Years 2014-16: Records fair except those for estimated daily discharges, which are poor.
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge, 120,000 ft³/s, Aug. 28, 2011, gage height, 24.38 ft, from floodmark in adjacent gage house, from rating curve extended above 18,000 ft³/s on basis of contracted-opening measurements at gage heights 18.37 ft and 19.14 ft and slope-area measurement at gage height 24.38 ft; minimum discharge not determined.

Peak Flow and Stage Information

Radar elevation may correspond to top of ice during winter periods.

This streamgage supports a flood inundation map (FIM) library for this area.

Gage PhotoStation image



This station managed by the NY Water Science Center Troy.

Available Parameters Period of Record
All 1 Available Parameters for this site

00060 Discharge(Mean) 1902-11-09  2018-11-16

Graph
Graph w/ stats
Graph w/ meas
Graph w/ (up to 3) parms
Table
Tab-separated
Days  (365)


  -- or --
Begin date


End date


Summary of all available data for this site
Instantaneous-data availability statement


Discharge, cubic feet per second

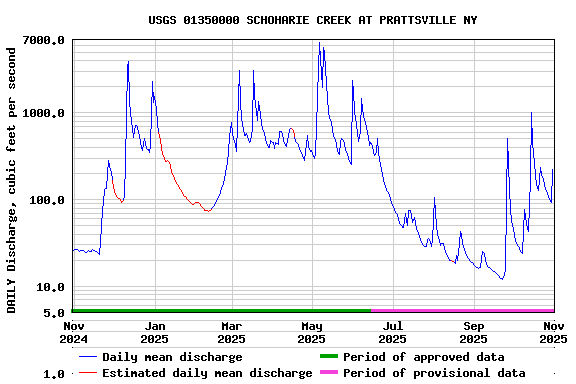

Graph of DAILY Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?
 Add site numbers


Create presentation-quality graph.
