USGS 01350355 SCHOHARIE CREEK AT BREAKABEEN NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



> Site Information
LOCATION.--Lat 42°32'15.5", long 74°24'36.9" referenced to North American Datum of 1983, Schoharie County, NY, Hydrologic Unit 02020005, on left bank 100 ft downstream from bridge on State Highway 30, 0.9 mi north of Breakabeen, and 1.1 mi downstream from Keyser Kill.
DRAINAGE AREA.--444 mi².
PERIOD OF RECORD.--July 1975 to current year.
REVISIONS HISTORY.--WDR NY-81-1: 1980(M). WDR NY-90-1: Drainage area. WDR-US-2011: 1996.
GAGE.--Water-stage recorder and crest-stage gage. Datum of gage is 686.79 ft above NGVD of 1929 (Soil Conservation Service benchmark) and 686.18 ft above NAVD of 1988.
REMARKS.--Considerable regulation of flow by Blenheim-Gilboa Pumped Storage Project about 8 mi upstream. Entire flow, runoff from 315 mi², except for periods of spill, diverted from Schoharie Reservoir through Shandaken Tunnel into Esopus Creek upstream from Ashokan Reservoir for water supply of City of New York. For days of reservoir outflow greater than 10 ft³/s, see station 01350101.
Water Years 2014-23: Records fair except those for estimated daily discharges, which are poor.
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge, 134,000 ft³/s, Aug. 28, 2011, gage height, 22.37 ft, outside gage height was 23.47 ft, from floodmarks, from rating curve extended above 27,000 ft³/s on basis of contracted-opening and flow-over-road measurement at gage height about 19.5 ft and runoff comparisons of peak flow with nearby stations; minimum discharge, 1.7 ft³/s, Oct. 14, 1980; minimum gage height, 0.25 ft, Sept. 26, 1985.
> Rating Information
> Additional Site Information

Radar elevation may correspond to top of ice during winter periods.

Gage PhotoStation image



This station managed by the NY Water Science Center Troy.

Available Parameters Available Period

1990-10-01  2024-11-21
2007-10-01  2024-11-21
2024-07-24  2024-11-21







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Discharge, cubic feet per second

Most recent instantaneous value: 17.4 11-21-2024   10:30 EST

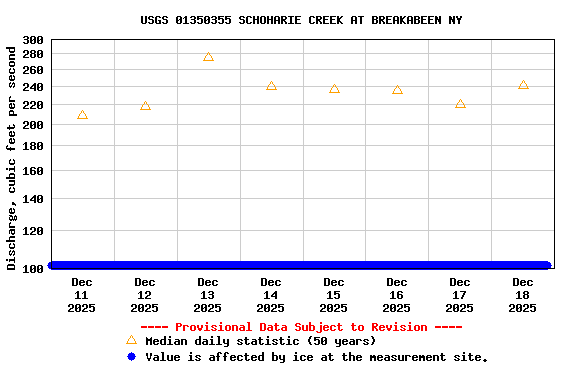

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Nov 21 based on 49 water years of record more
Min
(1983)
Most Recent
Instantaneous
Value Nov 21
25th
percen-
tile
Median Mean 75th
percen-
tile
Max
(2004)
14.0 17.4 55 266 512 745 5640


Gage height, feet

Most recent instantaneous value: 1.07 11-21-2024   10:30 EST
Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages




Gage height, feet, [backup from radar]

Most recent instantaneous value: 1.05 11-21-2024   10:30 EST
Graph of  Gage height, feet, [backup from radar]

Add up to 2 more sites and replot for "Gage height, feet, [backup from radar]"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages
