USGS 0136230002 WOODLAND CREEK ABOVE MOUTH AT PHOENICIA NY

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text



> Site Information
LOCATION.--Lat 42°04'47.0", long 74°20'04.5" referenced to North American Datum of 1983, Ulster County, NY, Hydrologic Unit 02020006, on right bank 0.2 mi upstream from mouth, and 1.5 mi southwest of Phoenicia on Woodland Valley Road.
DRAINAGE AREA.--20.6 mi².
PERIOD OF RECORD.--August 2003 to current year.
GAGE.--Water-stage recorder and crest-stage gage. Datum of gage is 870.52 ft above NAVD of 1988.
REMARKS.--Water Years 2014-24: Records fair except those for estimated daily discharges, which are poor.
EXTREMES FOR PERIOD OF RECORD.--Maximum discharge, 8,600 ft³/s, Apr. 2, 2005, gage height, 10.65 ft, from rating curve extended above 3,200 ft³/s, on basis of slope-area measurements at gage heights 10.00 ft and 10.65 ft; minimum discharge, 1.0 ft³/s, Sept. 24, 25, 2005, gage height, 4.13 ft; minimum gage height, 3.41 ft, Aug. 25, 28, 29, 30, 2022.
EXTREMES OUTSIDE PERIOD OF RECORD.--Maximum discharge, 6,240 ft³/s, Oct. 15, 1955, by computation of slope-area measurement.
> Rating Information
This station managed by the NY Water Science Center Troy.

Available Parameters Available Period

2003-08-01  2025-03-10
2007-10-01  2025-03-10
2016-11-10  2025-03-10
2022-06-23  2025-03-10
2016-11-10  2022-06-22
2016-11-10  2022-06-22







 (7)

  -- or --




Summary of all available data for this site
Instantaneous-data availability statement

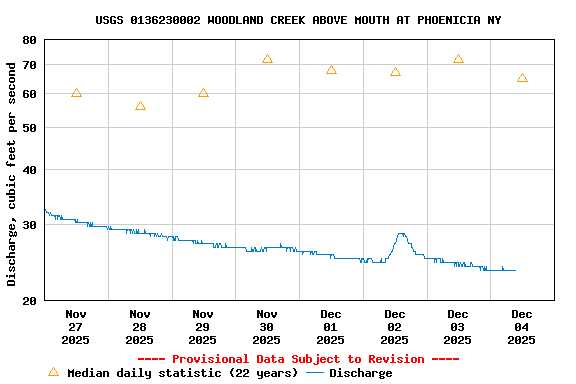

Discharge, cubic feet per second
Most recent instantaneous value: 76.0 03-10-2025   23:30 EST
Graph of Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?

Note



Create presentation-quality / stand-alone graph.   Subscribe to
?
WaterAlert

See this graph on the Monitoring Location Pages

Share this graph |

Daily discharge, cubic feet per second -- statistics for Mar 11 based on 21 water years of record more
Min
(2014)		 25th
percen-
tile		 Median Most Recent
Instantaneous
Value Mar 11		 75th
percen-
tile		 Mean Max
(2011)
12.7 26 47 76.0 91 127 1390

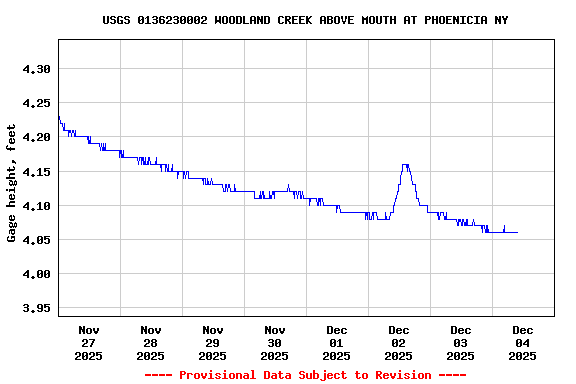

Gage height, feet
Most recent instantaneous value: 4.73 03-10-2025   23:30 EST
Graph of Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?

Note



Create presentation-quality / stand-alone graph.   Subscribe to
?
WaterAlert

See this graph on the Monitoring Location Pages

Share this graph |

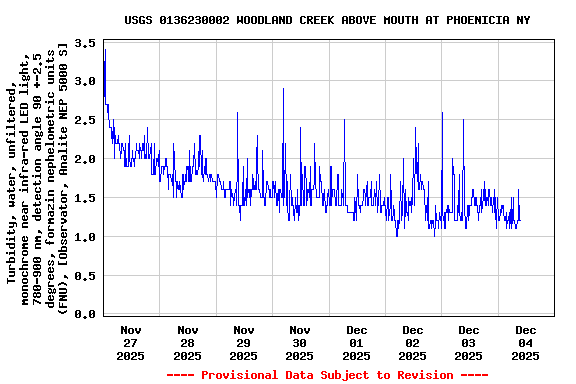

Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), Analite, [Observator, Analite NEP 5000 S]

-- Data temporarily unavailable for the time period specified --

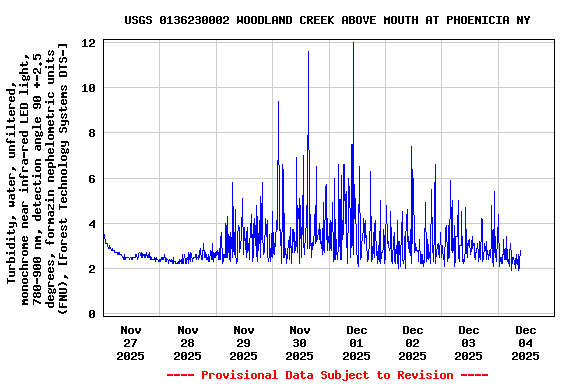

Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), [Forest Technology Systems DTS-]
Most recent instantaneous value: 5.5 03-10-2025   23:30 EST
Graph of Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), [Forest Technology Systems DTS-]

Add up to 2 more sites and replot for "Turbidity, water, unfiltered, monochrome near infra-red LED light, 780-900 nm, detection angle 90 +-2.5 degrees, formazin nephelometric units (FNU), [Forest Technology Systems DTS-]"

?

Note



Create presentation-quality / stand-alone graph.   Subscribe to
?
WaterAlert

See this graph on the Monitoring Location Pages

Share this graph |

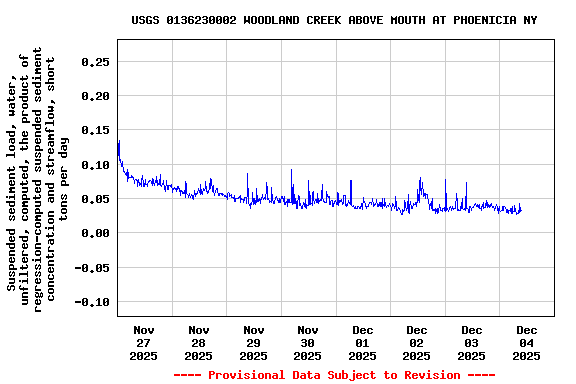

Suspended sediment load, water, unfiltered, computed, the product of regression-computed suspended sediment concentration and streamflow, short tons per day

-- Data temporarily unavailable for the time period specified --

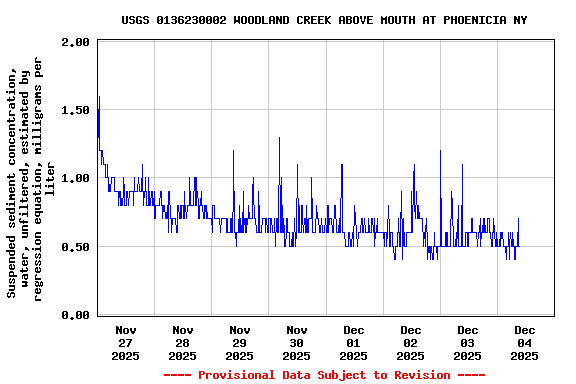

Suspended sediment concentration, water, unfiltered, estimated by regression equation, milligrams per liter

-- Data temporarily unavailable for the time period specified --
