USGS 04066003 MENOMINEE RIVER BELOW PEMENE CREEK NR PEMBINE, WI

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text

LOCATION.--Lat 45°34'46", long 87°47'13", in NE 1/4 sec.29, T.37 N., R.28 W., Menominee County MI , Hydrologic Unit 04030108, on left bank 40 ft. downstream from County Trunk Z bridge, 0.9 mi. downstream from Pemene Cr. 3.9 mi. west of Nathan, MI, 10.6 mi southeast of Pembine and at mile 64.3.

DRAINAGE AREA.--3,140 square miles.

PERIOD OF RECORD.--October 1949 to present. Published as "near Pembine" (04066000) prior to August 1982. Monthly discharges for some periods published in WSP 1307.

GAGE.--Water-stage recorder. Elevation of gage is 737.88 ft NAVD88, from GPS survey. Oct. 1949 to Oct. 27, 1972, water-stage recorder at site 1.0 mi upstream at elevation 745, from river profile map, and Oct. 28, 1972 to August 1982, water-stage recorder at site 1.5 mi upstream at elevation 770 from river profile map.

REMARKS.--Flow regulated by powerplants and by Michigamme Reservoir, capacity 119,950 acre-ft, and by Peavy Pond, capacity 33,860 acre-ft, on the Michigamme River and by smaller reservoirs upstream of gage. Gage-height telemeter at station.

Discharge values displayed at this site are often affected by ice in the winter, which leads to increased uncertainty. Click HERE for more info.

OPERATED IN COOPERATION WITH:

WE Energies Logo We Energies

Wisconsin Department of Natural Resources Logo Wisconsin Department of Natural Resources

and U.S. Geological Survey
Cooperative Matching Funds

Additional Information:

National Weather Service Logo National Weather Service Flood Forecast Page

The precipitation data for this station are temporary and will only be displayed for 30 days. Although the instrumentation is calibrated at least annually, the temporary classification means that documented routine inspections and other quality-assurance measures are not performed that would make the data acceptable for archival, retrieval, or future use in general scientific or interpretive studies.

Boating safety tips
This station managed by the Northeast Wisconsin Field Office - Rhinelander WI.

Available Parameters Available Period

2024-07-24  2024-11-21
1986-10-01  2024-11-21
2017-10-01  2024-11-21
2019-10-01  2024-11-21







 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement

Precipitation, total, inches

-- Data temporarily unavailable for the time period specified --


Discharge, cubic feet per second

Most recent instantaneous value: 2020 11-21-2024   06:00 CST

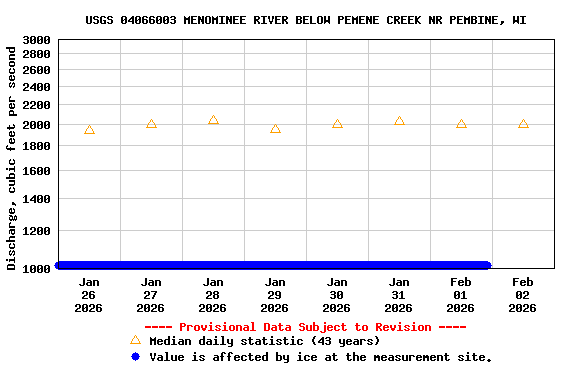

Graph of  Discharge, cubic feet per second

Add up to 2 more sites and replot for "Discharge, cubic feet per second"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages


Daily discharge, cubic feet per second -- statistics for Nov 21 based on 42 water years of record more
Min
(2009)
25th
percen-
tile
Most Recent
Instantaneous
Value Nov 21
Median Mean 75th
percen-
tile
Max
(1989)
1110 1530 2020 2170 2550 2810 7410


Gage height, feet

Most recent instantaneous value: 7.78 11-21-2024   06:00 CST

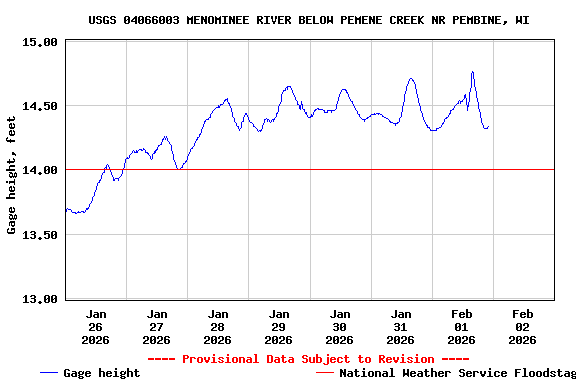

Graph of  Gage height, feet

Add up to 2 more sites and replot for "Gage height, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages




Stream water level elevation above NAVD 1988, in feet

Most recent instantaneous value: 745.66 11-21-2024   06:00 CST

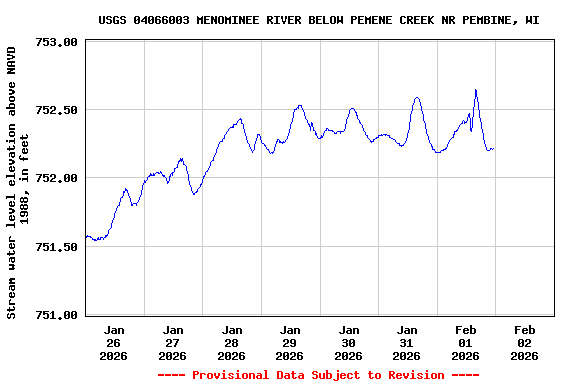

Graph of  Stream water level elevation above NAVD 1988, in feet

Add up to 2 more sites and replot for "Stream water level elevation above NAVD 1988, in feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

See this graph on the Monitoring Location Pages
