USGS 455927095123101 WLN03 129N36W15BBBB 02 Belle River 0000708358

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text
USGS Climate-Response Network (CRN) Well WLN03
County: Douglas
Township: Belle River (T129N R36W)
Location: 1.1 miles east of the intersection of Co. Rd. 13 and Co. Rd. 3
Land-surface elevation: 1347.56 +/- 0.03 feet, NAVD88
Installation: Nov. 4, 2004, for the Minnesota Department of Natural Resources

Well information
Depth: 20.35 feet
Open interval: 11–21 feet
Original and current use: Monitoring, for the USGS National Groundwater and Streamflow Information Program and the Minnesota Department of Natural Resources' Cooperative Groundwater Monitoring (CGM) Program.

Aquifer information
Type: Surficial sand and gravel
Thickness: More than 21 feet (0–>21 feet, BLS)
Deposit: Glacially deposited sand and gravel outwash


USGS logo This site is monitored as part of the USGS National Groundwater and Streamflow Information Program.

This site is also monitored as part of the Minnesota Department of Natural Resources' Cooperative Groundwater Monitoring (CGM) Program.

Water levels below land surface are accurate to 0.01 feet. Water levels above North American Vertical Datum of 1988 (sea level) are calculated by subtracting recorded water levels from the land surface elevation, which is accurate to 0.03 feet based on a differential GPS survey. Water-level differences are accurate to within 0.01 feet.

Water temperature is accurate to plus-or-minus 0.1°C, and differences in temperature are accurate to 0.1°C.

Precipitation is accurate to 0.01 inches except during freezing periods (about Dec. through early Apr.). The rain gage is unheated and uncovered. The precipitation data during freezing periods result from melting of snow (accumulated in the rain gage) during warm periods and do NOT represent actual precipitation. Precipitation totals during freezing periods may underestimate actual totals because the rain gage funnel may be full of snow (preventing further accumulation) or because snow in the funnel may sublimate instead of melt.

This station managed by the Mounds View Field Office.

Available Parameters Available Period

2004-11-30  2024-11-24
2007-06-22  2024-11-24
2004-12-01  2024-11-24
2004-12-01  2024-11-24








 (7)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement

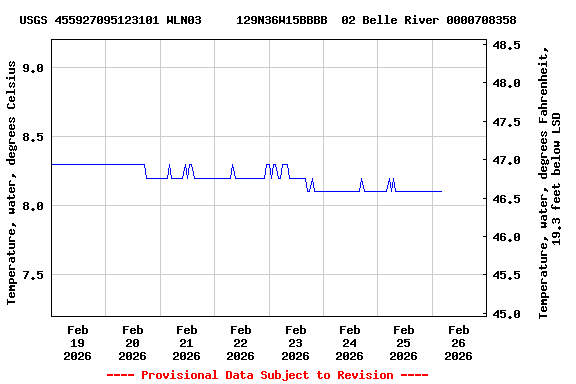

Temperature, water, degrees Celsius, 19.3 feet below LSD

Most recent instantaneous value: 11.1 11-24-2024   19:00 CST
Graph of  Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius, 19.3 feet below LSD"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages

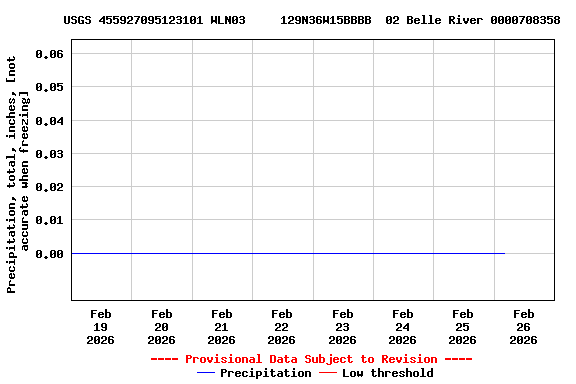

Precipitation, total, inches, [not accurate when freezing]

Most recent instantaneous value: 0.00 11-24-2024   19:45 CST
Graph of  Precipitation, total, inches, [not accurate when freezing]

Add up to 2 more sites and replot for "Precipitation, total, inches, [not accurate when freezing]"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages

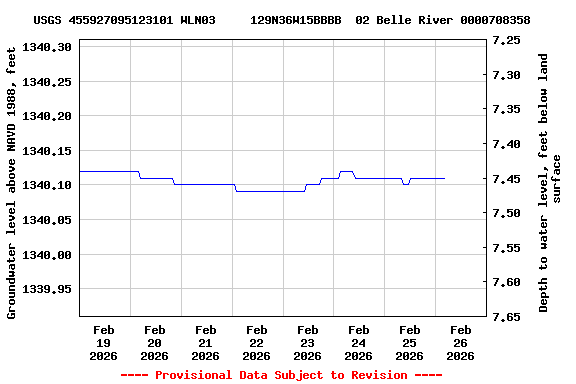

Groundwater level above NAVD 1988, feet

Most recent instantaneous value: 1340.15 11-24-2024   19:00 CST
Graph of  Groundwater level above NAVD 1988, feet

Add up to 2 more sites and replot for "Groundwater level above NAVD 1988, feet"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages

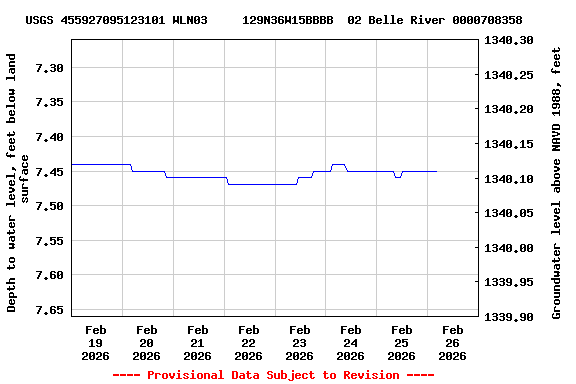

Depth to water level, feet below land surface

Most recent instantaneous value: 7.41 11-24-2024   19:00 CST
Graph of  Depth to water level, feet below land surface

Add up to 2 more sites and replot for "Depth to water level, feet below land surface"

?



Create presentation-quality / stand-alone graph.   Subscribe to WaterAlert

Field Visit data are no longer available on this page, please go to the new Monitoring Location pages to see the field visit data graphed with the time series data. See this graph on the Monitoring Location Pages
